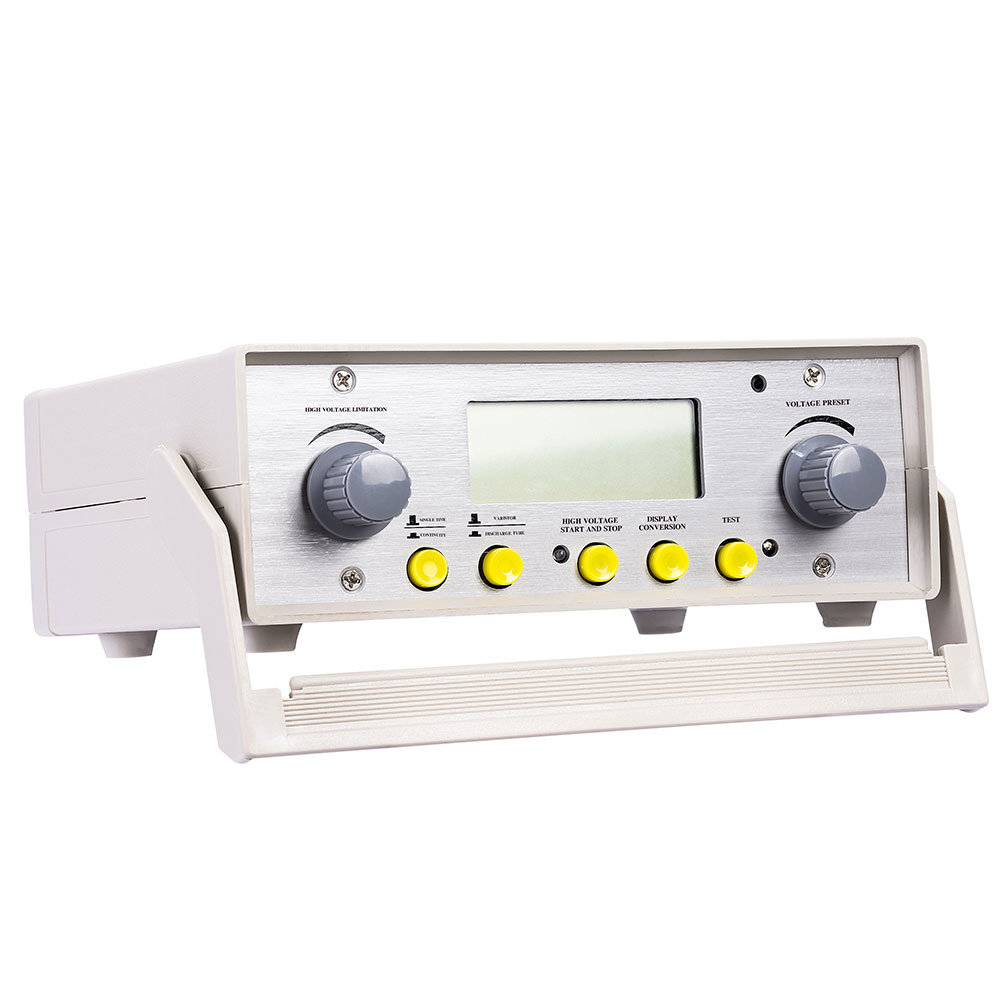

Wuhan HTFC-2G Lightening Protection Components Tester

Voltage dependent resistor measurement
- Voltage (U 1mA):
Range: (0~1700)V; Maximum error: ≤±2%±1d; Test Conditions: 1mA±5μA
- Leakage current (I 0.75U 1mA):
Range: (0.1～199.9)μA; Maximum error:±(2 μA +1d); Test Conditions: 0.75 U1mA, ≤±2%±1d
Discharge tube measurement
- DC breakdown voltage (Vsdc)
Range:(20 ～ 1700)V; Maximum error: ≤±2%±1d; Test Conditions: Rate of voltage rising 100V/S±10%
Other parameters
- Insulating resistance : 6Ω(500V)
- Voltage withstand: AC1.5kV 50HZ 1min
- Temperature and humidity: 0～＋40℃，≤85%RH
- Storage temperature and humidity: －10℃～＋50℃，≤90%RH
- Power supply: DC12V dedicated power supply
- Power consumption: 8W
- Dimension: 208×190×78mm3
- Weight: ≤1kg
Accessories
- Host
- Instrument Case
- Special Power
- Test Leads
- Test Wire
- Manual, Report, Certificate
