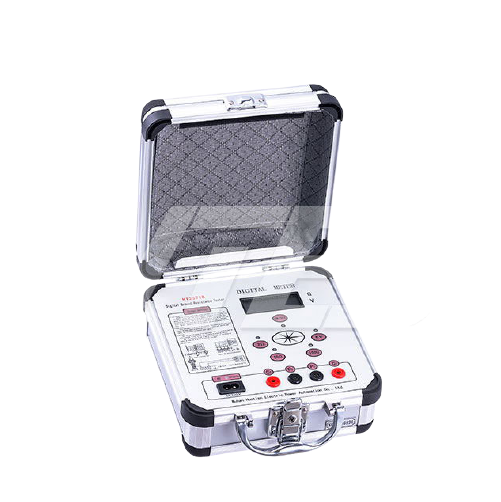

Wuhan HT2571B Earth Resistance Tester (0~2000Ω, 0~19.99V)

Working conditions:

- Ambient temperature: 0℃~+45℃

- Relative humidity: ≤85%RH

Measurement range and constant current value (effective value)

- Resistance: 0~20Ω(10mA), 2~200Ω(1mA),

20~2000Ω(0.1mA)

- Voltage: AC 0~19.99V

Measurement accuracy and resolution:

- Precision rowspan: 0~0.2Ω≤±3%±1d

0.2Ω~1999.9Ω≤±1.5%±1d

1~19.99V≤±3%±1d

- Resolution: 0.01Ω, 0.1Ω, 1Ω, 0.01V

Power and power consumption

- Maximum power loss: ≤2W

- DC: 8×1.5V (AA, R6) battery

- AC: 220V/50Hz

Dimensions: 220×200×105mm3

Weight: ≤1.4kg
