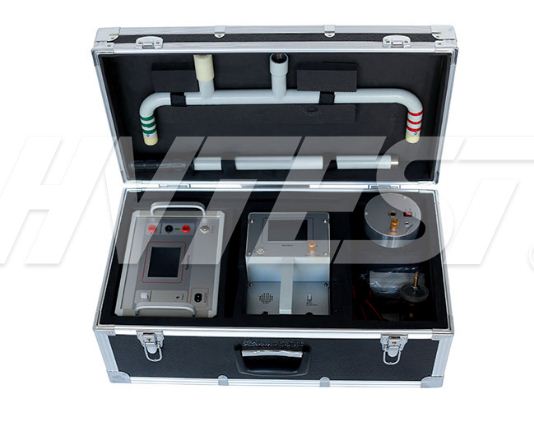

Wuhan HT_TC Cable Fault Detector (16 Km)

Cable Fault Teater (Flash meter)

Environmental temperature:－10℃～40℃

Measurement error:Gross error ±1%

Test distance:Up to 16km

Shortest test distance (blind area):1～3m

Sampling rate:25MHz

Power supply and power consumption:AC or DC power supply in the machine; AC 220V±10%, power consumption is not more than 10W; DC 6V/7AH, power

consumption is not more than 6W

In-machine transmit pulse width and amplitude: 0.2μs,100～120V;2μs,150～160V

Work modelLow voltage pulse, DC high voltage flash and impact high pressure flash

display resolution:V/50 meters, V is the propagation speed m/μs

Display method:320×240 LCD liquid crystal with backlight display

Weight:6kg

Dimensions: 500×300×195mm3

Path meter

Tracing positioning distance: Local cable is 3km, other cables can reach 20km

Positioning impedance range:0～5MΩ

positioning accuracy:< ±10cm

Buried depth detection:<3m

Dimensions

Path meter, fixed point meter: 470 × 290 × 255mm3

Accessory box: 630 × 300 × 130mm3

Weight

Path meter, point meter: 9kg

Accessory box: 8kg

 Manual
