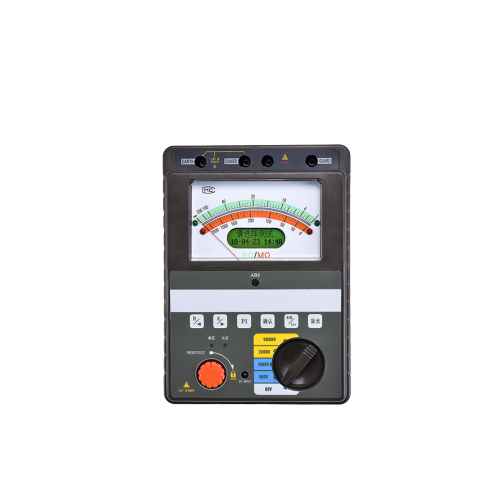

Wuhan BC2010 Intelligent Dual Display Insulation Resistance Tester

Accuracy
- Output voltage 500V DC
+ Temperature: 23℃±5℃
+ Insulation resistance: 1MΩ～20GΩ ±5％
+ Output voltage: 4MΩ～20GΩ 0～+10％
- Output voltage 1000V DC
+ Temperature: 23℃±5℃
+ Insulation resistance: 2MΩ～40GΩ ±5%
+ Output voltage: 8MΩ～40GΩ 0～+10%
- Output voltage 2500V DC
+ Temperature: 23℃±5℃
+ Insulation resistance: 5MΩ～100GΩ ±5%
+ Output voltage: 20MΩ～100GΩ 0～+10%
- Output voltage 5000V DC
+ Temperature: 23℃±5℃
+ Insulation resistance: 10MΩ～200GΩ ±5%
+ Output voltage: 40MΩ～200GΩ 0～+10%
HV short-circuit current: ≥3mA
Power supply: 8 AA batteries(8 AA rechargeable batteries, external charger)
Work environment:
- Temperature: -10℃～40℃
- Relative humidity: ≤85 %
Storage environment
- Temperature: -20℃～60℃
- Relative humidity: ≤90 %
Insulation performance: When the voltage between circuit and shell body is 1000V DC, the maximum resistance is 2000MΩ.
Withstand voltage properties: When the voltage between circuit and shell body is 2500V DC, withstand voltage time is 1 minute.
Dimension: 230mm×190mm×90mm (L×W×H)
Weight: 2KG
Accessory
- Test line
- Charge adapter
- Instruction manual
- Certificate
- Power cord
