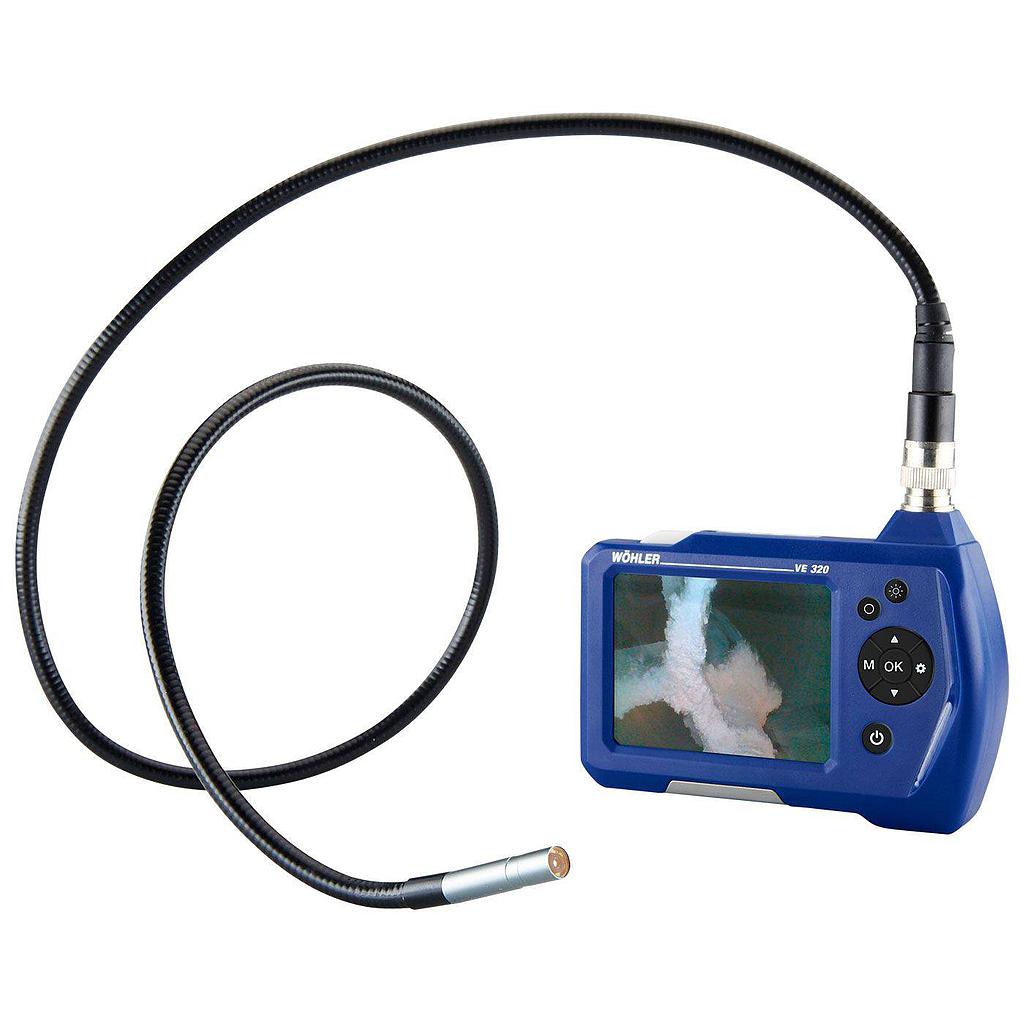

Wöhler VE 320 Video Endoscope

Monitor

Dimensions housing: 3.5 Zoll

Monitor resolution: 320 x 240 Pixel

Menu languages: English, German, Spanish, French, Russian, Italian, Dutch

Ports: AV-Out, Micro-USB-Port, Micro-SD-Card slot

Camera head

Camera head: 8.2 mm dia (optional 5.5 mm dia)

Camera head resolution: 0.3 Megapixel

Depth of Field: 60…80 mm

Viewing angle: 60°

Flashlight: 8.2 mm dia: 6 adjustable LEDs Ø 5.5mm: 4 adjustable LEDs (optional)

IP protection class camera head: IP 67

Probe length: 1.0 m

Recording formats

Image files: JPG

Image resolution: 640 x 480px, 1600 x 1200px, 2048 x 1536px

Video file: AVI

Video resolution: 320 x 240px, 640 x 480px, 1280 x 720px

Working temperature: 0°…45 °C

Power supply: 2,600 mAh Lithium battery

Max. battery life: 5 to 6 hours

Weight: 347.5 g
