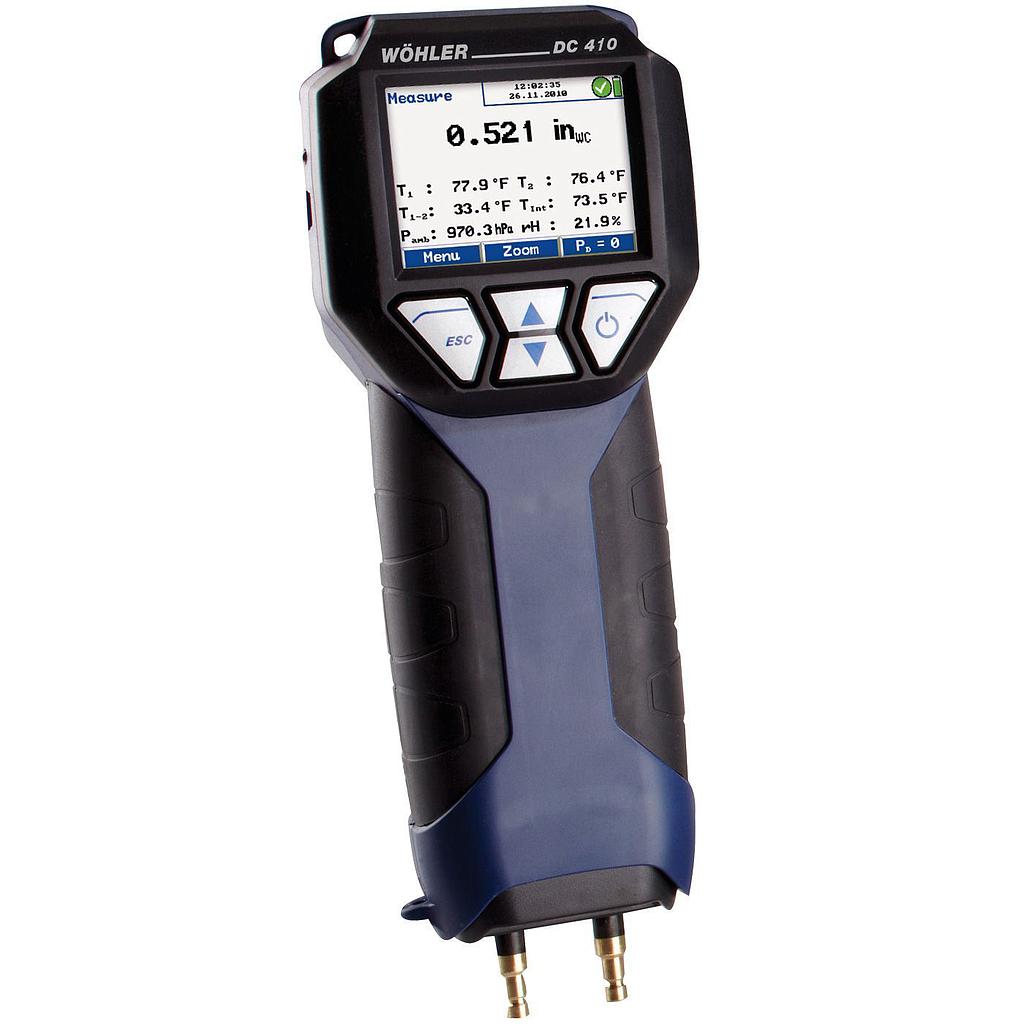

Wöhler DC 410 FLOW Pressure Differential & Flow Meter (± 100 hPa)

Technical data

- Differential Pressure:

Range :±100 hPa

Accuracy: < 3 % of the reading, if the value is < ±5 Pa, better than ±0,15 Pa

Resolution: 0,01 Pa within the range ±110 Pa; 0,1 Pa within the range ±1.000 Pa; otherwise 1 Pa

- Air speed:

Range: 0,3~120 m/s

Resolution: 0,01 m/s

Continuous density correction: automatic, with temperature signal

- Temperature (internal sensor) :

Range: -20~60 °C

Accuracy: < ±1 °C

Resolution: 0,1 °C

- External temperature probe:

Range: 2 canals, -20~800 °C

Accuracy: < ±2 °C at 0~133 °C otherwise 1,5 % of the value, according to the directive EN 50379-2

Resolution: 0,1 °C

- Relative humidity:

Range: 0~100 % r.H. (relative humidity), non condensing

Accuracy: < ±2 % r.H., at 0~90 % r.H., otherwise < 3 % r.H.

Resolution: 0,1 % r.H.

- Barometric Pressure:

Range: ±300~1,100 hPa

Accuracy: < ±1,5 % hPa of reading

Resolution: 0,1 hPa

- Current consumption: 4 AA rechargeable batteries or 4 AA disposable batteries 1,5 volt

- Interfaces: USB interface for data transfer to a PC. It is possible to transfer the data directly from the meter to the Wöhler TD 600 thermal fast printer

- Operating temperature: 5~40 °C

- Dimensions: 80 x 225 x 60 mm

Scope of delivery

- 1 x Wöhler DC 410 Flow US-Version

- 1 x Plastic Case for Wöhler DC 410flow / DC 430

- 2 x Flexible Capillary Hose 3m for Wöhler DC 410FLOW
