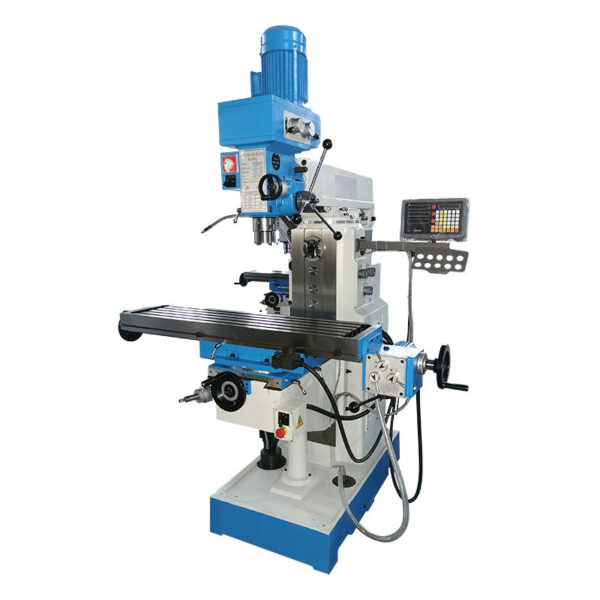

WMT CNC ZX6350ZA Universal Milling Machine (2.2kW)

Spindle taper: MT4/ISO40

Distance vertical spindle to table: 100-500mm

Distance horizontal spindle to table: 0~400mm

Distance spindle to column: 240~710mm

Spindle speeds range: (8 steps)90-2000(vertical)

(12 steps)40-1300(horizontal)r/min

Automatic Feed Series sleeve: 120(vertical)mm

Table size: 1370×320mm

Table travel: 800/320/400mm

Distance horizontal spindle to arm: 175mm

Table feeds range(x/y): 40-605(8 steps)(max.810)mm/min

T of table (no./width/distance): 3/14/70mm

Main motor: 2.2kW

Motor of table power feed: 1000W

Coolant pump motor: 40W

N.W/G.W.: 1550/1700kg

Overall dimension: 1700×1480×2150mm
