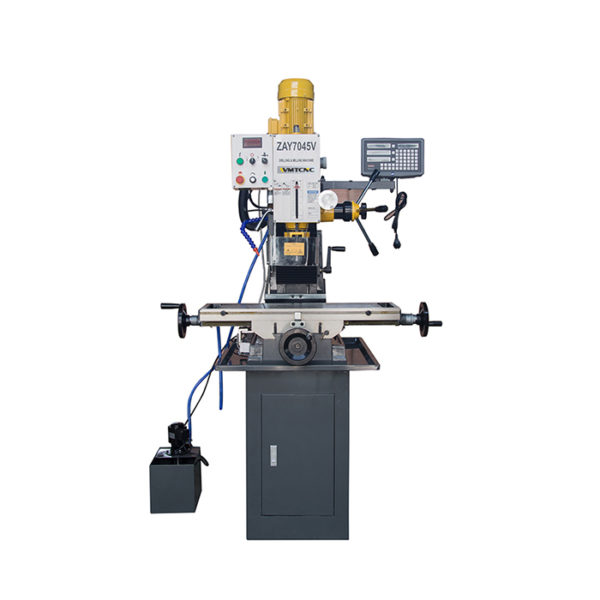

WMT CNC ZAY7045V Milling and Drilling Machine (1.5kw)

Max. drilling capacityΦ45mm

Max. tapping capacity: 20mm

Max. face milling capacity: Φ80mm

Max. end milling capacity: Φ32mm

Max. distance from spindle nose to table: 400mm

Min.distance from spindle axis to column: 285mm

Spindle travel: 130mm

Spindle taper: MT3, MT4 or R8

Range of spindle speed: 100-530,530-2800 r.p.m

Swivel angle of headstock (vertical): ±45°

Table size: 800×240mm

Forward and backward travel of table: 175mm

Left and right travel of table: 500mm

Motor power: 1.5kw

N.W/G.W: 325/375kgs

Packing size: 770×880×1160mm
