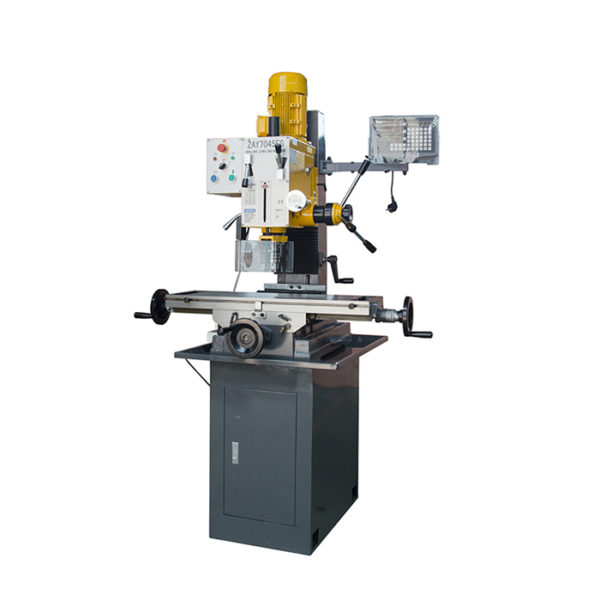

WMT CNC ZAY7045FG Milling and Drilling Machine (1.5KW)

Drilling capacity: Φ45mm

Max. tapping diameter: Φ20mm

Max. face milling capacity: Φ80mm

Max. end milling capacity: Φ32mm

Max. distance from spindle nose to table: 450mm

Min.distance from spindle axis to column: 260mm

Spindle travel: 130mm

Spindle taper: MT3, MT4 or R8

Step of spindle speed: 6 steps

Range of spindle speed 50Hz: 80-1250 rpm

60Hz: 95-1500 rpm

Swivel angle of headstock (vertical): ±45°

Table size: 800x240mm

Forward and backward travel of table: 175mm

Left and right travel of table: 500mm

Motor power: 1.5KW (2HP)

Net weight/gross weight: 320/370kg

Packing size: 770×880×1160mm

Loading amount/20″ container: 36pcs
