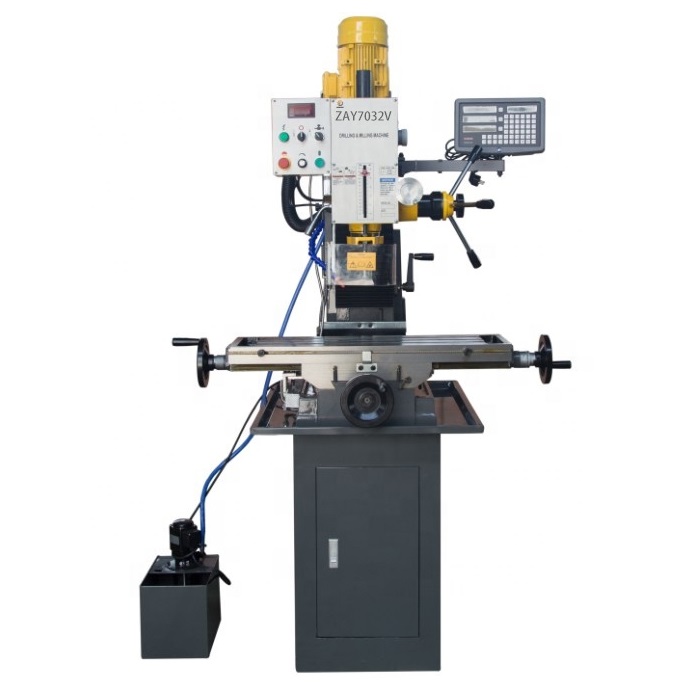

WMT CNC ZAY7032V Milling and Drilling Machine

Max.Drilling capacity: 32mm

Max. face mill capacity: 63mm

Max. end mill capacity: 20mm

Distance from spindle nose to table: 400mm

Min. distance from spindle axis to column: 285mm

Spindle travel: 130mm

Spindle taper: MT3,MT4.R8

Range of spindle speed(2 steps): 100-530, 530-2800rpm

Swivel angle of headstock(perpendicular): ±45°

Table size: 800*240mm

Forward and backward travel of table: 175mm

Left and right travel of table: 500mm

Motor power(DC): 1.1/1.1/1.5kw

N.W/G.W: 325/375kgs

Packing size (L*W*H): 770*880*1160mm
