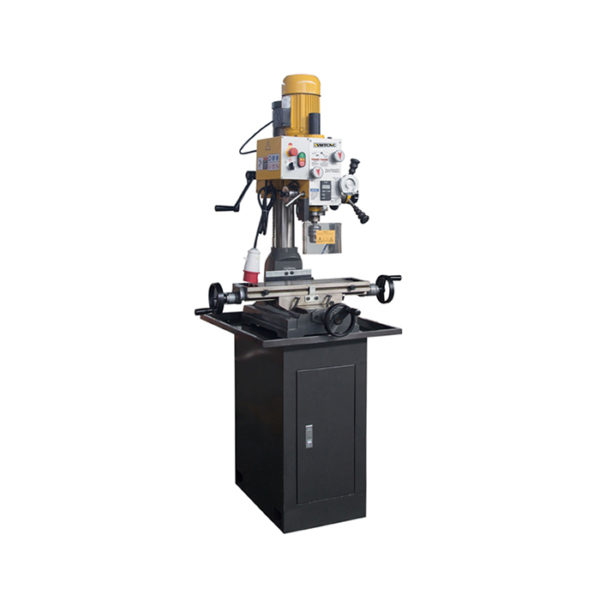

WMT CNC ZAY7032G Milling and Drilling Machine (1.5KW)

Drilling capacity: Φ32mm

Max. tapping capacity: Φ20mm

Max. face milling capacity: Φ63mm

Max. end milling capacity: Φ20mm

Distance from spindle nose to table: 440mm(optional 670mm)

Min.distance from spindle axis to column: 272.5mm

Spindle travel: 130mm

Spindle taper: MT3 or R8

Step of spindle speed: 6 steps

Range of spindle speed 50Hz: 80-1250 rpm

60Hz: 95-1500 rpm

Swivel angle of headstock (horizontal): ±360°

(vertical): ±45°

Table size: 800x240mm

Forward and backward travel of table: 175mm

Left and right travel of table: 500mm

Motor power: 1.5KW

Net weight/gross weight: 318/368kg

Packing size: 770×880×1160mm
