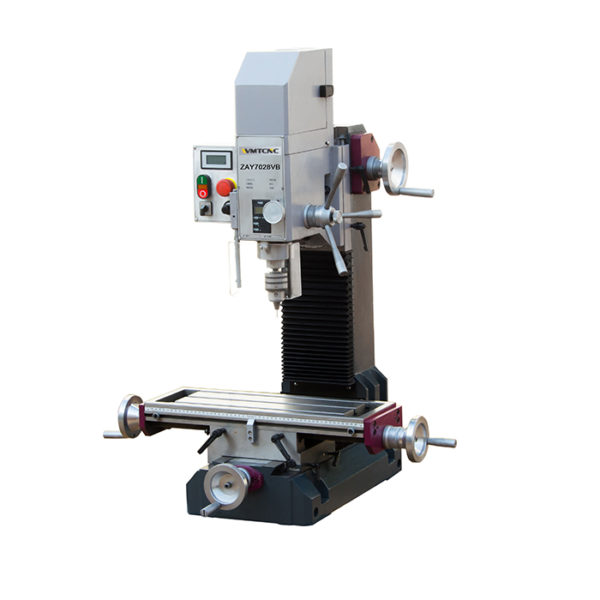

WMT CNC ZAY7028VB Milling and Drilling Machine (1100W)

Drilling capacity.: 28mm

End milling capacity: 20mm

Face milling capacity: 75mm

Tapping capacity: M16

Spindle travel: 70mm

Distance from spindle to column: 212mm

Distance from spindle to table: 50-340mm

Taper of spindle: MT3

Spindle speed: Varier Stepless, 75-1250rpm(L), 150-2500rpm(H)

Table size: 540x180mm

T-slots size: 12mm

Cross Table Travel: 200mm

Longitudinal Table Travel: 325mm

Headstock Travel: 290mm

Motor: 1100W, DC Brushless

Packing Demension: 750x710x1000mm

Weight(N/G): 180/210kgs

Loading amount /20″ container: 48pcs
