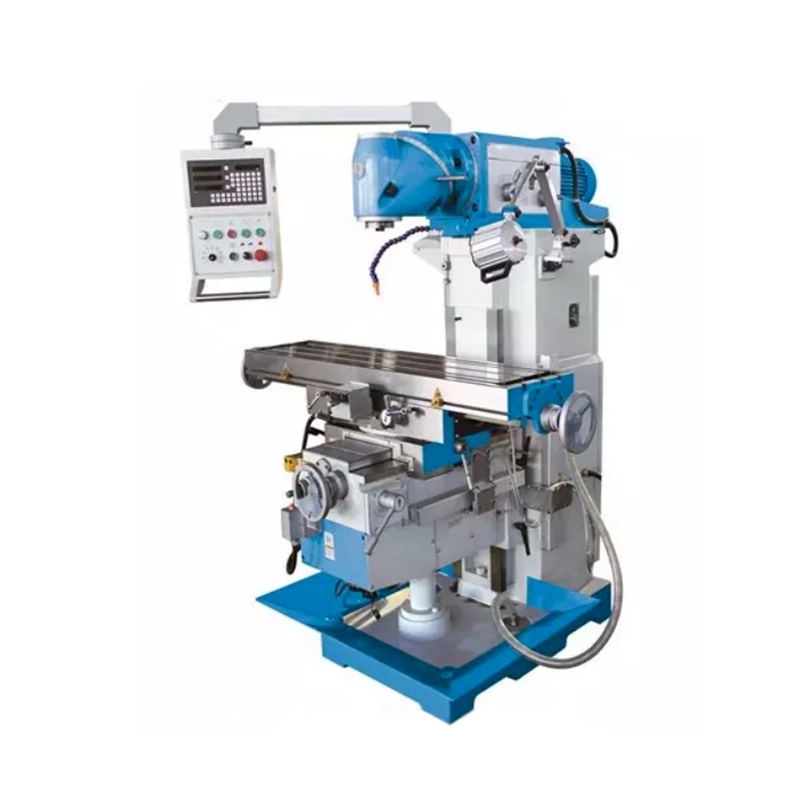

WMT CNC XL6230 Universal Milling Machine (3KW)

Table size: 1270*300mm

X/Y/Z travel: 720*280*400mm

Max rotary angle of table: Optional±45°

Max table weight: 300Kg

T-slots(NO./width/pitch): 3*14*80mm

Spindle speed series and range: V 45-1660(11steps)rpm

distance between spindle nose and table surface: 100-500mm

Spindle taper: 7:24 IS040

Table rapid speed(X/Y/Z): 1335/1335/1000mm

Table feed(X/Y/Z): X,Y:30-830mm Z:23-625

Main motor power: 3KW

Feed motor: 3 axes using a 10N.m servo motor, auto feed and change speeds variably

Dimensions: 1730*1760*1700mm

Machine weight: 1550kg
