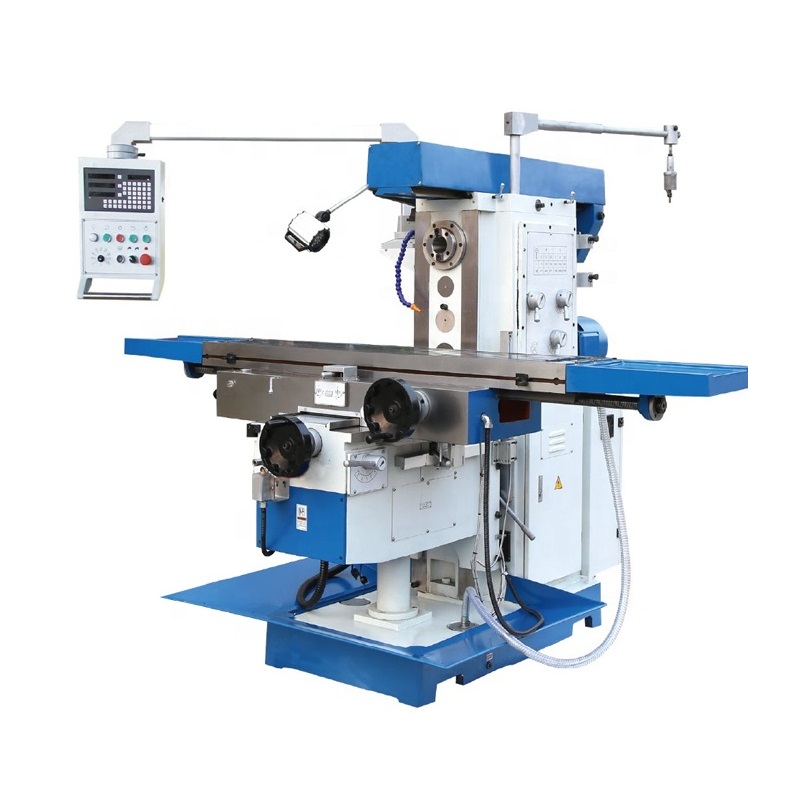

WMT CNC XL6136CL Universal Milling Machine (5.5kw)

Table size: 1600*360mm

Table Travel (X,Y,Z): 1300mm, 320mm, 400mm

Spindle taper: 7:24 ISO50

Rapid speed of table (X,Y,Z): 1200mm/min, 800mm/min, 600mm/min

Table feed (X,Y,Z): 8 stepsmm/min, X:30-750 \ Y:20-500 \ Z:15–375mm/min

T-slots(NO./Width/Pitch): 3/18/80mm

Spindle speed range: 12 stepsr/min, 60-1800r/min

Distance between spindle nose and table surface: 20-420mm

Arm travel: 500mm

Distance between spindle axis and colomn guide way: 175mm

Main motor: 5.5kw

X,Y,Z to feed Ac servo motor torque: 10N.m

Overall size: 2520*2100*1870mm

Net weight: 2550kg
