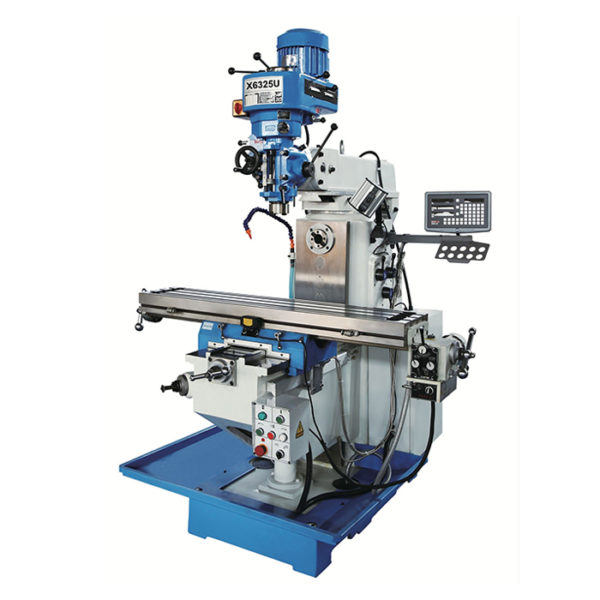

WMT CNC X6325U Universal Milling Machine (80-4200rmp, 66-4540rpm, 40-1300rpm)

Table size: 1270×254mm (Optional:1370×254mm)

T-slotes (No./Width/Pitch): 3/16/65mm

Table travel (X/Y/Z): 800×400×400mm

Spindle taper:vertical/horizontal: R8/NT30(V),NT40

Ditance between horizontal nose and table surface: 0-400mm

Ditance between spindle axis and ram surface: 270mm

Spindle speed range: 80-4200rmp(variable)

66-4540( vertical,16 steps)

40-1300rpm( horizontal, 12 steps)

Arm travel: 400mm

Main motor power: 3KW(vertical), 4KW(horizontal)

Machine overall size (L*W*H): 1600×1550×2150mm

Machine weight: 1380kg
