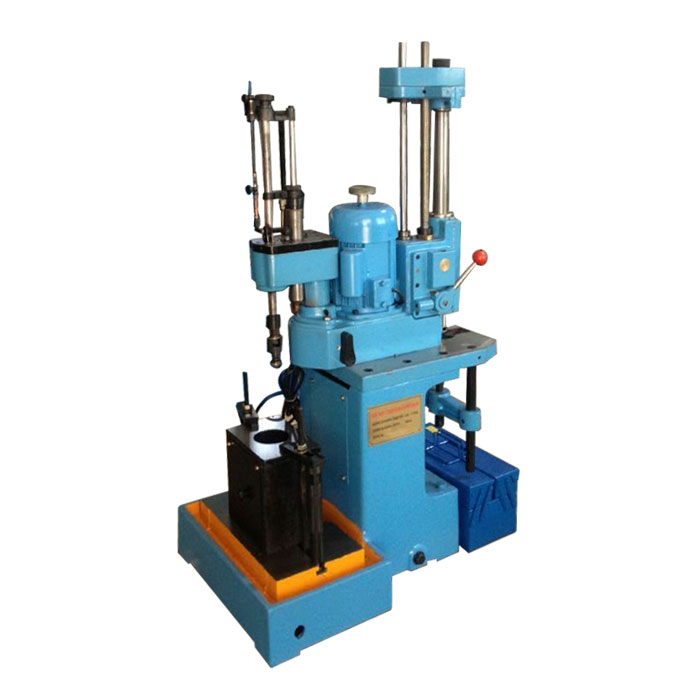

WMT CNC TM807A Cylinder Honing Machine (0.75.kW)

Diameter of boring &honing hole: 39-72mm

Max.Boring & honing depth: 160mm

Rotational speed of boring &spindle: 480r/min

Steps of variable speed of boring honing spindle: 1step

Feed of boring spindle: 0.09mm/r

Return and rise mode of boring spindle: Hand operated

Rotational speed of honing spindle: 300r/min

Honing spindle feeding speed: 6.5m/min

Electric motor power: 0.75.kw

Rotational: 1400r/min

Voltage: 220v or 380v

Frequency: 50HZ

Overall dimensions(L*W*H): 680mm*480mm*1160mm

Packing(L*W*H): 820mm*600mm*1275mm

Weight of main machine(approx): N.W 230kg G.W 280kg
