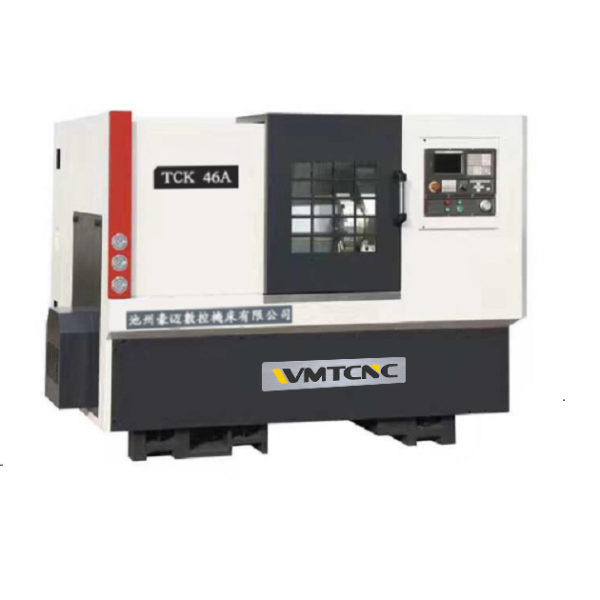

WMT CNC TCK46A Slant Bed CNC Lathe (460mm)

Max.swing over bed: 460mm

Max.swing over cross slide: 170mm

Max.machining length: 350mm

Spindle unit: 170mm

Spindle nose (optional chuck): A2-5/A2-6

Spindle motor power: 5.5kw

Max.spindle speed: 3500rpm

Spindle bore: 56mm

X/Z axis screw specifications: 3210/3210

X-axis travel: 240mm

Z-axis travel: 400mm

X axis motor torque: 7.5N.m

Z axis motor torque: 7.5N.m

X/Z axis repeatability: ±0.003mm

Tool Turret (Optional): 80-8T/12T

Turret center high dimensions: 80mm

Hydraulic Quill dia.: 70mm

Hydraulic Quill traverse: 80mm

Hydraulic Quill taper: MT5

Hydraulic tailstock travel: 200mm

Machine dimension(LxWxH): 2500x1700x1710mm

Net.weight: 2600kg
