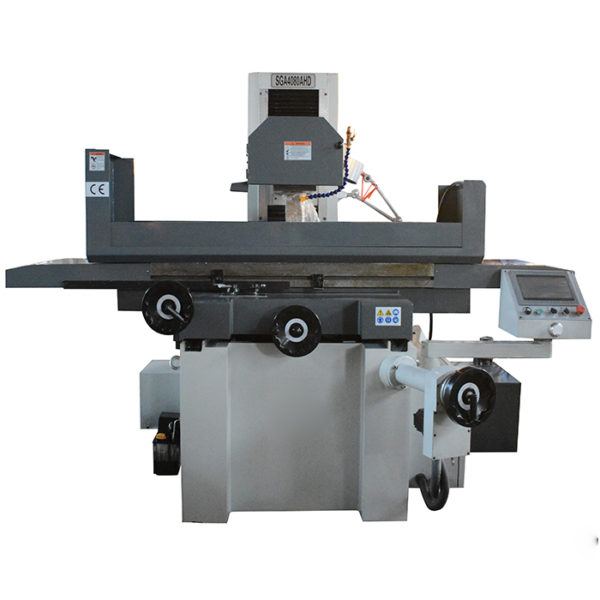

WMT CNC SGA4080 Surface Grinding Machine (4/5.5kW)

Table size(WxL): 406x813mm

Max.longitudinal travel: 910mm

Cross travel: 450mm

Max.distance from spindle center to table: 580mm

Magnetic chuck size: 400x800mm

Speed of table longitudinal movement: 7-23m/min

Table transerve movement/ Auto feed: 0.1-8mm/min

Table transerve movement/ Repid speed: 990mm/min

Table transerve movement/ Feed of handlwheel: 0.02mm/div.

Wheelhand vertical movement/ Feed of hand-wheel: 0.005mm/div.

Grinding wheel Speed 50HZ: 1450rmp

Grinding wheel Speed 60HZ: 1750rmp

Grinding wheel (ODxWxID) Size:350x40x127mm

Spindle motor: 4/5.5kw

Hydraulic Motor: 2.2kw

Cooling pump motor: 0.09kw

Elevating motor: -(Hmode)0.25kW(Rmode)0.5kW(D mode servo motor)

Total rated Power: 7.5/9kw

Height of machine: 1890mm

Floor space: 3600x2400mm

Gross weight: 3600kg

Packing dimensions(LxWxH): 2715x265x2250mm
