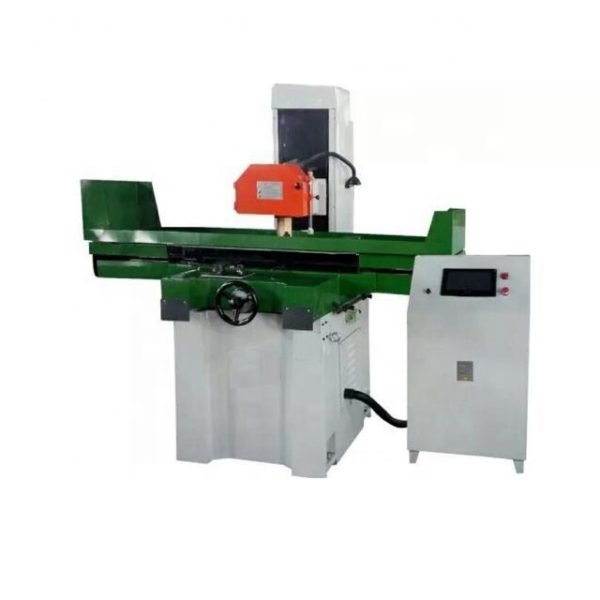

WMT CNC MY1230 Surface Grinding Machine (4kW)

Worktable size: 700x300mm

Max. travel of table: 760x370mm

Table max. cutting area: 760x370mm

T-slot (number width): 1x14mm

Distance from table to spindle center: 540mm

Wheel size (dia width bore): 300x30x75mm

Spindle speed: 1440r/m

Table longitudinal (left and right) speed: 5-25m/min

Worktable cross continuous speed: 150mm/min

Worktable cross intermittent speed: 0-5mm/min

Worktable cross handwheel-stroke per revolution: 4mm

Worktable cross handwheel-stroke per grid: 0.02mm

Worktable vertical handwheel-stroke per revolution: 2mm

Worktable vertical handwheel-stroke per grid: 0.01mm

Spindle motor: 4kw

Cooling motor: 0.4kw

Hydraulic motor: 1.5kw

Working pressure: 3mpa

Oil tank capacity: 80L

Max. flow capacity: 18L/min

The mechanical surface of the base of parallelism: 300/0.004mm

Surface roughness: Ra0.32um

N.W: 2100kgs

G.W: 2350kgs

Machine size: 2560x2430x1920mm
