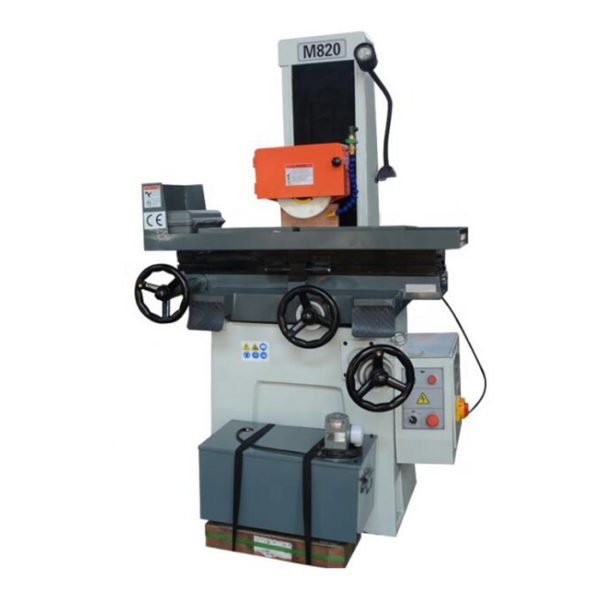

WMT CNC M820 Surface Grinding Machine (1.1kW)

Table Size (L× W): 480×200mm

Max movement of working table(L× W): 530×220m

T -Slot number×width: 1×14mm

Max distance from spindle center to table surface: 440mm

Wheel Size(Outer diameter×width×Inner diameter): φ200×20×Φ31.75mm

Wheel speed 50HZ: 2850r/min

Wheel speed 60HZ: 3440r/min

Vertical feed on handwheel per revolution: 2.5mm

Vertical feed on handwheel per graduation: 0.02mm

Cross feed on handwheel per revolution: 1.25mm

Cross feed on handwheel per graduation: 0.01mm

Spindle motor: 1.1kW

Coolant pump motor: 40W

The parallelism of working surface to base level: 00:00.0mm

Surface roughness: Ra0.32μm

Net: 700kg

Gross: 800kg

Overall dimension(L×W×H): 1680x1140x1760mm

Package dimension(L×W×H): 1140x1250x1940mm
