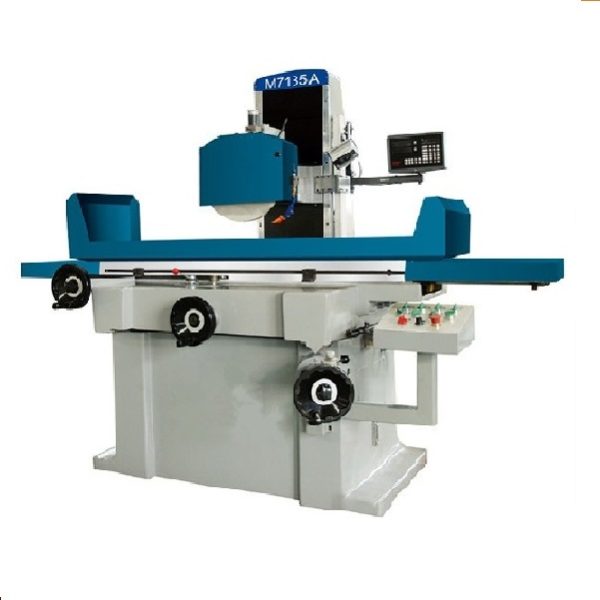

WMT CNC M7135 Surface Grinding Machine (4/5.5kW)

Max workpiece to be ground: M7135-1:800X350mm, M7135-2:1000X350mm

Max. table longitudinal movement: 880/1020mm

Distance from table to wheel spindle center: 580mm

Max. lateral displacement of the grinding head: 390mm

Grinding head vertical feed per revolution: 4mm

Grinding head vertical feed per grid: 0.02mm

Fast lifting motor

Power: 0.37kw

Speed: 1440rpm

Wheel Size (dia×width×bore): 350x32x127mm

Spindle speed: 1450rpm

Spindle motor: 4/5.5kw

The mechanical surface of the base of parallelis: 300/0.004mm

Surface roughness: Ra:0.63μm

N.W/G.W: 3000/3300kg, 3500/3800kg

Packing size: 2410x2210x2200mm, 2800920180mm
