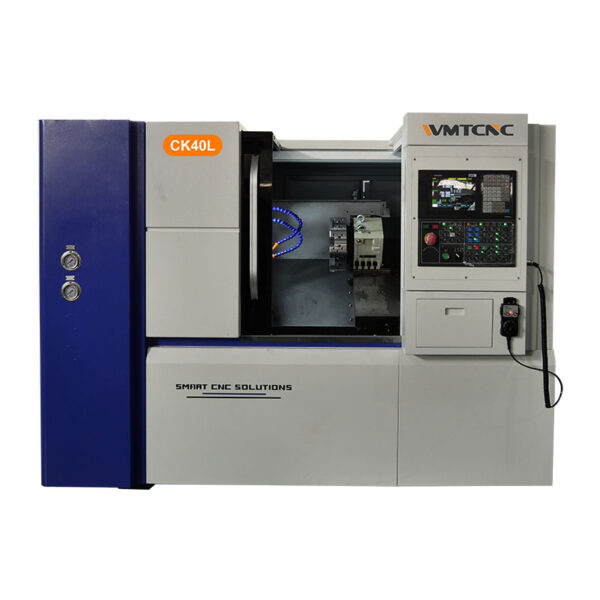

WMT CNC CK40L Slant Bed CNC Lathe (400mm)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Chuck size: 6inch
Max. swing over bed: 400mm
Max. length of workpiece: 250/350(optional)mm
Max. machining dia.: 200mm
Standard machining dia.: 160mm
Max. swing over cross slide: 210mm
Spindle bore: 55mm
Spindle hole after hydr.: 46mm
Spindle nose: A2-5
Spindle taper: MT6
Spindle speed: 4500rpm
Main motor power: 5.5kw
X axis travel: 250mm
Z axis travel: 250/350mm
X/Z rapid traverse: 20000mm/min
Tool post: 8
Slant bed degree: 35degree
Overall dimension(LxWxH): 2520×2050×1960mm
Weight: 2100kg
