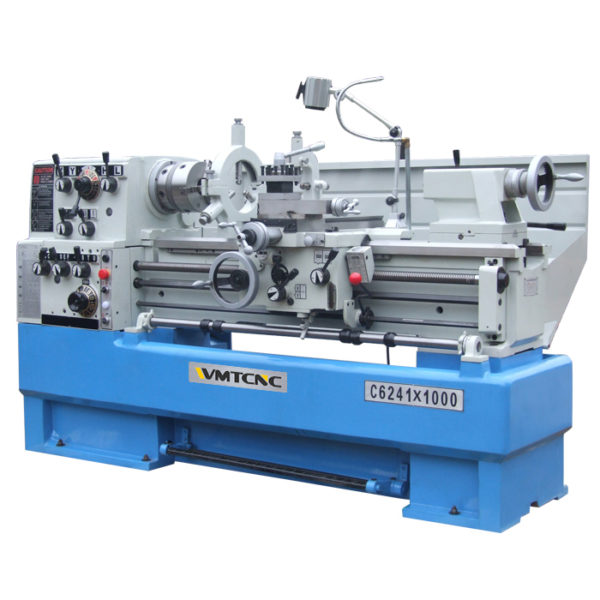

Swing over bed: 410mm
Swing over cross slide: 220mm
Swing in gap: 640mm
Length of gap: 165mm
Distance between centers: 1000mm /1500mm/2000mm/3000mm
Width of bed: 300mm
Spindle nose: D1-6
Spindle bore: 58mm
Taper of spindle bore: MT6
Range of spindle speed: 12 changes 25-2000r/min
Max.travel of cross slide: 285mm
Leadscrew thread pitch: 6mm or 4T.P.I.
Max.Section of tool: 25×25mm
Longitudinal feeds range: 42 kinds,0.031-1.7mm/rev
Cross feeds range: 42 kinds, 0.014-0.784mm/rev
Inch threads range: 60 kinds, 2-112T.P.I.
Tailstock quill diameter: Φ60mm
Tailstock quill travel: 128mm
Tailstock quill taper: MT4
Power of main motor: 5.5kw(7.5HP) 3PH
Power of coolant pump: 0.1kw(1/8HP) 3PH
Overall dimension: 2200/2750/3250×1080×1370mm
Packing size: 2250/2800/3300×1120×1620mm
Net weight: 1670/1920/2070kgs
Gross weight: 1980/2265/2450kgs
