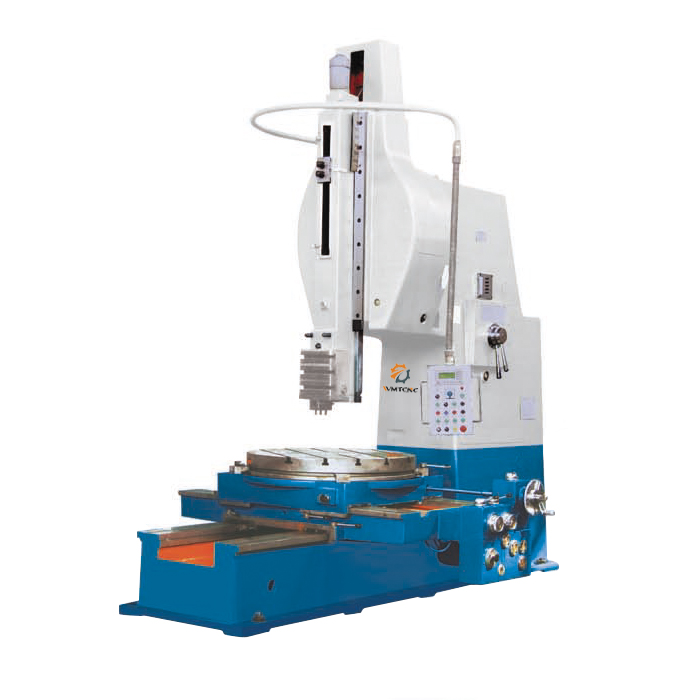

Maximum insertion length of the ram(interpolated inner hole 530 mm): 630mm
The number of reciprocation per minute of the ram: 8,12,20,30r.p.m
Ram tilt angle: ±10
Tool chuck T-slot width: 22H11mm
Distance from the tool support surface to the front wall of the bed: 1120mm
Work surface to the lower end of the carriage: 800mm
Worktable maximum longitudinal movement distance: 1000mm
Worktable maximum lateral movement distance: 700mm
Worktable vertical and horizontal feed: 0,10,0.20,0.32,0.54,0.80,1.30mm/per
Worktable rotary feed: 3’6′,9’36”,16’12”,24′,39’deg/per
Table diameter: 1120mm
Workbench maximum load: 200kg
Workbench central T-slot width: 22H11 mm
Main drive motor power:11kw
Feed servo motor: 4.0kw
Ram position adjustment motor: 0.55kw1400r.p.m
Maximum cutting force: 20000N
Machine net weight(about): 11T
Machine tool outline size (length x width x height): 3580×2390×3660
Split package size: 3780/2560/1300/2350/1200/2500mm
