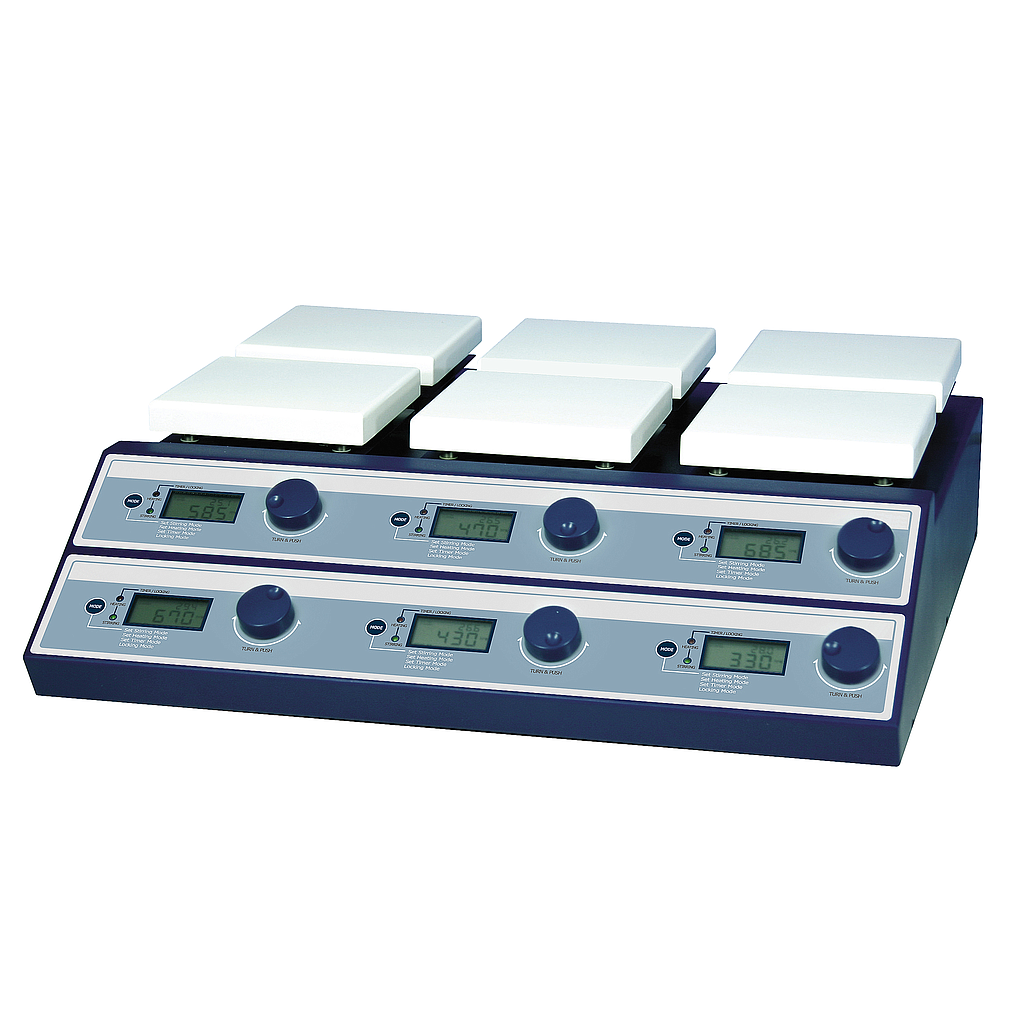

WITEG SMHS-6 Multi-Point Hotplate Stirrer (350°C; 80 ~ 1500 rpm)

Stirring points: 6 (2x3)

Body: Powder-coated steel

Plate: Ceramic-coated aluminium, 140x140 mm (each place)

Stirring capacity: max 20l

Speed & control resolution: 80 ~ 1500 rpm, 5 rpm

Temperature range & accuracy: max 350°C; ±0.3°C

Temperature resolution: 0.1°C display, 0.5°C control

Temperature uniformity: specially designed heating module: temperature difference less than 10%

Heating power/ consumption: 400 W x 6

Timer & alarm: 99hr 59 min (with continuous run), error status and timer-end

Display: Digital LCD with backlight function

Controller: Digital feedback controller with Jog-Dial (Turn + Push) and touch-button

Safety circuit: overheat protection

Stirring bar: 3x/6x 30 mm bar included, usable up to 50 mm bar

Permissible temperature & RH%: ambient temperature +5~ 50°C, 85% RH

Temperature sensor ports: 3

Stand rod sockets: 6

Dimension & weight: 510x410xh180 mm, 18 kg

Packing size: 570x540xh230 mm, 18 kg

Power supply: 1 Phase AC 230V, 50/60 Hz
