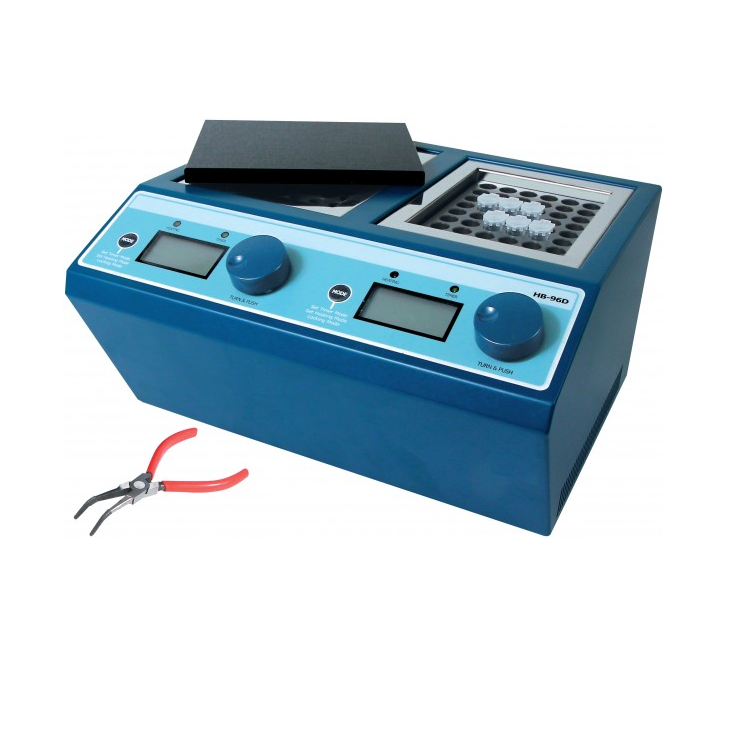

WITEG HB-96D Heating Block (+5°C to 150°C; ±0.1°C at 37°C; 600W)

Block: interchangeable block ( 90 x 120 x 60 mm) for various tubes

Temperature range and accuracy: ambient to +5°C to 150°C; ±0.1°C at 37°C, ±0.2°C at 90°C, ±0.4°C at 135°C

Heat up speed & sensor: approx. 5°C/min PT100

Timer with alarm: 99hr 59min, alarm (error status and timer end)

Dimension: unit: 285 x 250 x 155 mm, 2 x block: 90 x 120 x 60 mm

Packing size: 400 x 270 x 200 mm, 6 kg

Power supply: 1 Phase AC 230V, 50/60 Hz

Power consumption: 600W
