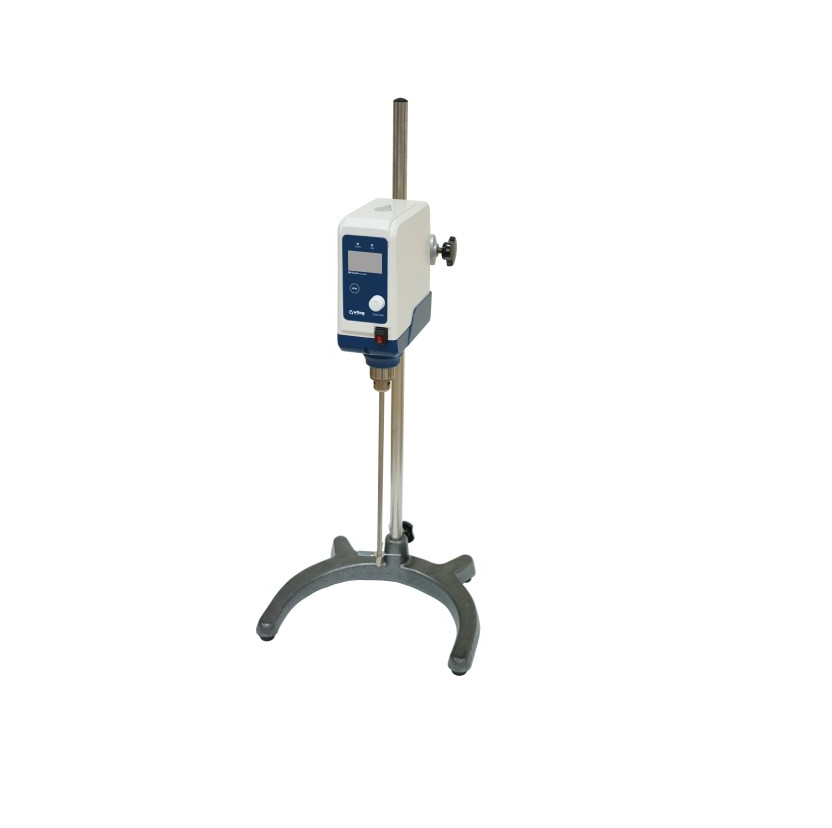

WITEG DH-D pro High-speed Overhead stirrer (200 - 3000 rpm)

Version: high-speed

Width (Outer): 84 mm

Length (outer): 205 mm

Height (outer): 275 mm

Material: aluminium die casting

Ideal for: specialized for low- to medium-viscosity materials

Controller: digital PID controller

Torque: 200 Ncm

Moisture range: 80% RH

Speed: 200 - 3,000 rpm, 2:1 ratio

Capacity: max. 100 l (H2O)

Motor rating: Input: 200W, Output: 180W

Stirrer diameter: Ø 10 mm or less, chuck grip capacity Ø 3 - 10 mm shafts, flex-couplings (Ø 6 - 12 mm)

Power consumption: 300 W

Temperature range: ambient temperature 0 - 40°C

Viscosity (mPas): 50,000 mPas
