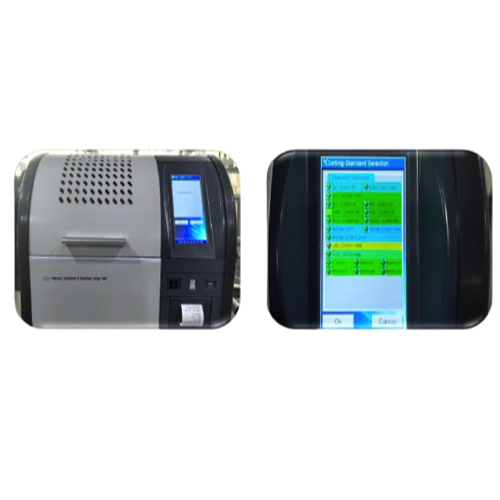

WGM ÖLPG Oil BDV Tester (80 – 100kV)

Power supply: AC220V ±22V, 50Hz ±2.5Hz

Display: Colorful LCD touch screen

Output voltage range: AC 0 ~ 80kV (100kV can be designed)

Rate of voltage rise: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0 kV/s (selectable)

Max. test times: 10

Stir: Yes or No

Wait time: 0 ~ 15m

Booster capacity: 1.5KVA

Resolution: 0.1kV

Voltage measurement error: ±3%

Total voltage distortion rate: <3%

Power consumption: 200W

Weight: 35kg

Size: 590mm × 440mm × 430mm

Working environment: Room temperature to 40°C, humidity <85%

Certificate: CE, ISO 9001
