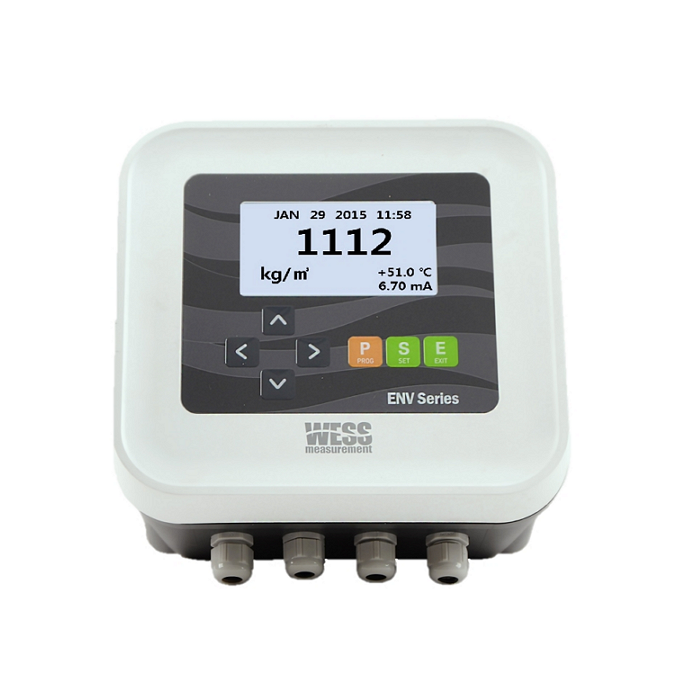

WESSGlobal C2S Controller for Sludge Density Meter ENV200 (0 ~ 50%, 0 ~500,000 mg/l)

Measuring Principle: Ultrasonic Attenuation and EEAM(Envelope Energy Average Method)

Measuring Range :

0 ~ 500,000mg/l (0 ~ 50%)

1,000 ~ 3,000kg/m³ (1.000 ~ 3.000g/cm³)

Resolution :

0.1% or 0.01% (Selectable),

1 kg/m3 or 0.001 g/cm3

Display : Graphic LCD

(Density, Time, Echo profile, mA, Etc.)

Accuracy :

±0.15% (±0.5% of F.S.)

±15 kg/m³, ±0.015 g/cm³

Operating Temp. : ‐20 ~ +70°C (‐4 to 158°F)

Outputs: Current output : 4 to 20mA, nom. Load 250Ω

(Load range: 100 to 750Ω)

Relay output : 1 SPDT (5A, 250VAC)

Digital output : RS232(STD.), RS485(Option)

Power Supply Standard : 100V ~ 240V AC, 50~60Hz, < 14W

Option : 24V DC

Enclosure Material : Body/Cover ‐ ABS

Dimension : 252(W) x 238(H) x 125(D)mm

Weight : 2,2 kg

IP Rating : IP67

Data Saving: Maximum 400 days (10K point)

Screen: Numeric, Data trend, Echo profile, parameter

Certificate: CE
