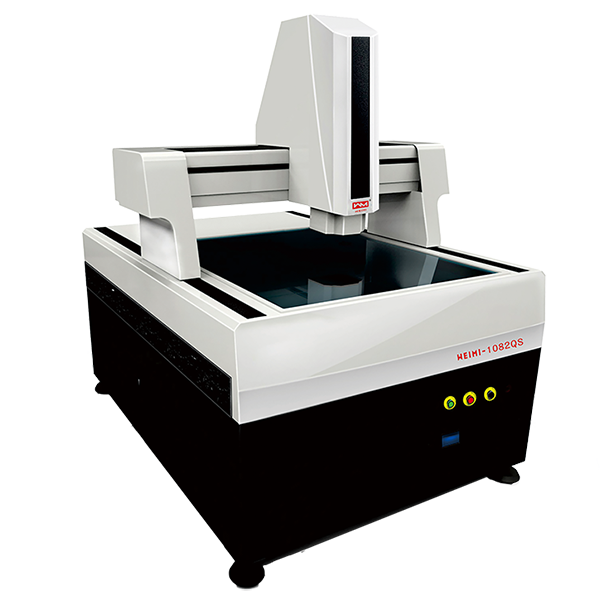

Dimension: 1550*1310*1920 mm
Measuring range (Y/X/Z): 700/600/200 mm
Workbench
Working desk: 860*760 mm
Glass surface: 760*660 mm
Load-bearing: 50 kg
Total weight: 1400 kg
Image measurement and measurement system
CCD: Weimi20 1/3 inch color high resolution camera 520TV line (optional)
Zoom lens: 0.7-4.5X
Video zoom: 30-225X
Object field of view: 10.6-1.6 mm
Working distance: 90 mm
Linear accuracy (µm): X/Y Accuracy ≤3+L/200 Z Accuracy ≤5+L/50 ("L" refers to the measured object length in mm)
Repeatability: ≤0.003mm
Positioning accuracy: 0.001mm
Illumination: LED surface light, brightness adjustable
Temperature & Humidity: 15-30°C, relative humidity: 20-80% (non-condensing)
Power supply: 220V±10% (AC) 50Hz
Machine credit: 1850W
