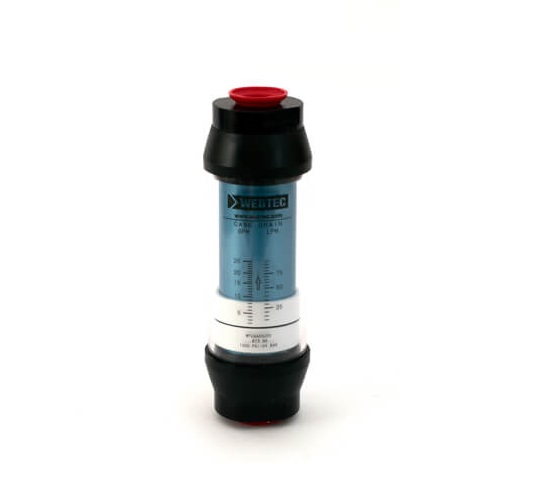

Webtec WPB Hydraulic Flow Monitor (550 lpm; 150 US gpm)

Flow: 0.5 - 550 lpm, 0.1 - 150 US gpm

Pressure: rating up to 420 bar (6000 psi)

Measuring accuracy ± 2.0 % of full scale

Repeatability: ± 1% of full scale

Max. operating pressure: Aluminium and Brass monitors 240 bar (3500 psi), stainless steel 420 bar (6000 psi).

Max. operating temperature: 115° C (240° F)

Note: For operation to 315° C (600° F), a high temperature range is available

Calibration:

Oil monitors: DTE 25 @ 43°C (40 cSt), 0.873 sg

Water monitors: Tap water @ 21°C (1 cSt), 1.0 sg

Flow calibration certifcates are available on request, this is a chargeable option.

Note: Must be requested at time of order & cannot be retrospectively requested.
