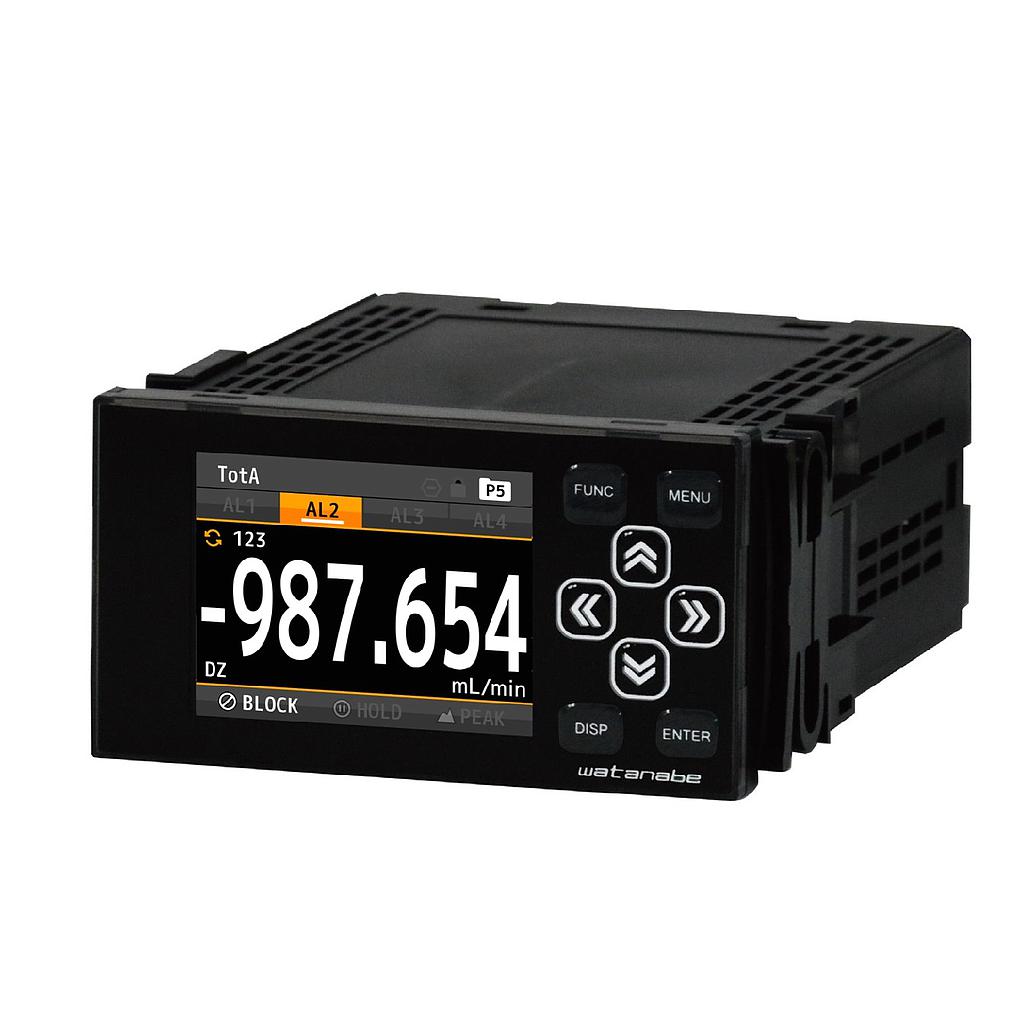

Watanabe WPMZ-5 Graphical Digital Panel Meter (Rotation and Speed Measurement)

- Input:

Pulse input

Line driver input

(2 channel input available)

- Output:

Analog output

BCD output (Open collector NPN/PNP)

RS-232C

RS-485 (Modbus RTU)

Comparator output(Open collector NPN/PNP) (AL1~AL4)

Relay output

- Power:

AC100～240V

DC12V

DC24～48V

- Operating temperature/humidity: -5～+50℃　35～85%RH

- Dielectric strength: AC3000V

- Display: 2.4 inch TFT full-color LCD

- Panel size: 52(H)×96(W)mm

- External Dimensions: 52(H)×96(W)×145(D)mm

- Weight: Approx. 350g

- Standards & Approvals:

EN61326-1

EN61010-1

EN50581
