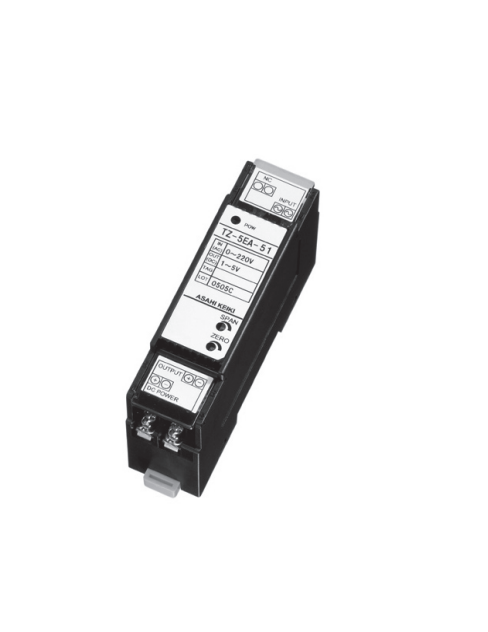

Watanabe TZ-5EA-Y2 Terminal Type AC Voltage Isolated Transducer

Input

AC Voltage (AC-coupled true RMS measurement)

Input signal:

Less than 300 V AC and more than 0 V AC

Span : Less than 300 V AC and more than 4 V AC

Input frequency : 40 to 1000Hz

Note : A measurement error may become larger when higher harmonic wave components of more than input frequency are contained.

Input allowable range: less than 150% (The upper limit 300V AC)

Output

Output signal: 0 to 10V DC

Allowable Loadresistance:

More than 4kΩ

Negative output:more than 10kΩ

BaseAccuracy :

±0.2%F.S (5 to 100%F.S)(25ºC±2ºC)

±1.0%F.S (0 to 5%F.S)(25ºC±2ºC)

Power supply variation : ±0.06 %F.S (±0.5% to the input of 0 to 5%)

Load resistance variation :±0.06 %F.S

Frequency variation : ±0.2 %F.S (Based on 60Hz)

Temperature characteristic : ±0.02 %F.S/ºC

Response time : Less than 700msec (0→90%)

Front adjustments : ±5% for zero and span

Insulation resistance : Between input and output/power supply ;

More than 100MΩ at 500 VDC

Dielectric strength : Between input and output/power supply ;

For 1 min. at 1500VAC

Power supply voltage : 24VDC ±10 %

Consuming current : Less than 30mA (24VDC at voltage output)

Less than 50mA (24VDC at current output)

Operating ambient temperature : -5 to 50ºC

Operating ambient humidity : Less than 90 %RH (No-condensing)

Storage temperature : -10 to 70ºC

Storage humidity : Less than 60%RH (No-condensing)

Case material : ABS resin(Black) 94V-2

Weight : Approx. 80g

Vibration resistance : Frequency: 10 to 55Hz; ampliutde(half): 0.15mm to 10 sweeps of 5 min each in X, Y, and Z directions
