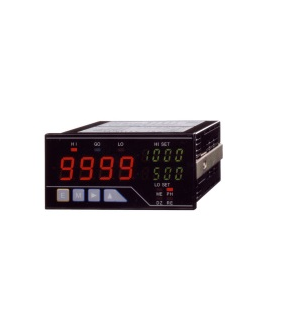

Watanabe A5210-18 Universal Type Digital Panel Meter (DC 9 - 60 V, Single, 1 ~ 5 V, 4 ~ 20 mA)

Main board: DC 9 - 60 V

Display board: Single

Output: None

Input: 1 to 5 V, 4 to 20 mA

Display:

Main display Red LED 14.2 mm height

Sub display Green LED 8 mm height

Conversion rate: 12.5 times/sec.

Maximum display: 9999

Overrange indication: When input exceeds the maximum display, display OL or –OL

Zero display: Leading zero suppression

Decimal point: Settable to any digit position

External control: Start/Hold, Peak Hold, Digital Zero

Operating temp.: 0 to 50°C 35 to 85% RH

Storage temp.: –10 to 70°C less than 60% RH

Power supply:

AC 100 to 240V±10% (AC main unit)

DC 9 to 60 V (DC main unit)

Power consumption: approx 4 VA (at 100 V)

Dimensions: 96 mm (W) X 48 mm (H) X 147.5 mm (D) DIN size

Weight: approx. 450 g
