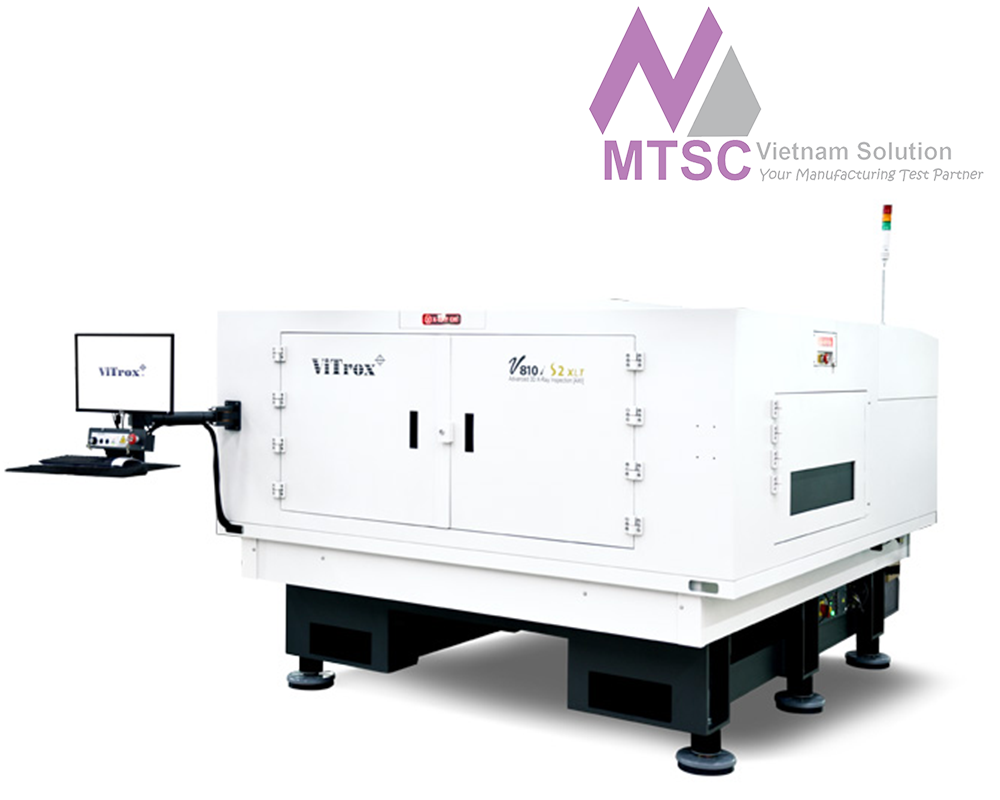

Vitrox V810i S2EX : Advanced 3D X-ray Inspection System (AXI)

Manufacturer: Vitrox

Model: V810i S2EX

Warranty: 12 months

V810i S2EX : Advanced 3D X-ray Inspection System (AXI)

World fastest and best test coverage AXI system for PCB SMT assembly line.

Allowable Panel Characteristics **

Maximum panel size: 482 mm x 610 mm (19"x24")

Minimum panel size: 76 mm x 76 mm (3" x 3" )

Maximum panel inspectable area: 474 mm x 610 mm (18.7"x24")

Maximum panel thickness: 7 mm (276 mils)

Minimum panel thickness: 0.5 mm (20 mils)

Panel warp: Downside < 3.3 mm; Upside < 1.5 mm

Maximum panel weight: 4.5kg

Board top clearance:

50 mm @ 23 µm resolution

38 mm @ 19 µm resolution

38 mm @ 10.5 µm# resolution

11 mm @ 11 µm resolution

11 mm @ 6 µm# resolution

* Calculated from Board Top surface

Board bottom clearance: 70 mm

Panel edge clearance: 3 mm

Panel width tolerance: ±0.7 mm

System resolution: 23 µm/19 µm#, 11 µm, 10.5µm, 6µm#

100% Press-fit testability: Yes (With PSP2 feature)

Maximum acceptable panel temperatures: 40 Deg C

Power and Environmental

System footprint (Width X Depth X Height): 1566 mm x 2145 mm x 1972 mm

Weight: ~3500 kg
