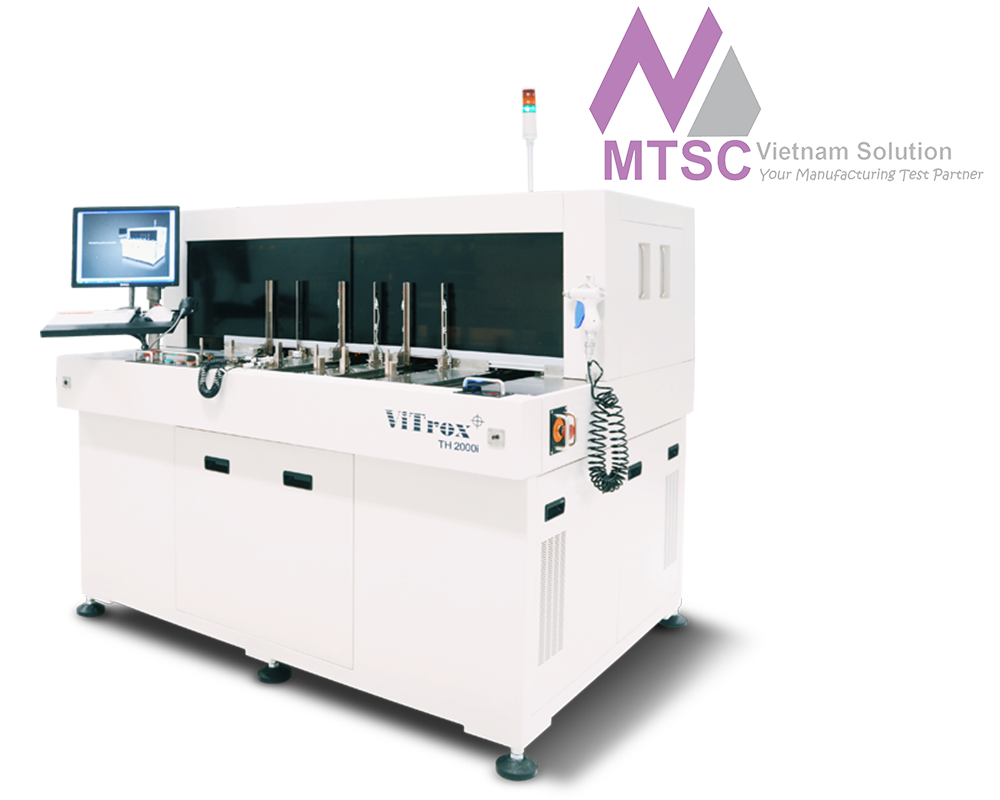

Vitrox TH2000i Tray to Tray Vision Handler

Manufacturer: Vitrox

Model: TH2000i

Warranty: 12 months

TH2000i : Tray-Based Vision Solutions

The TH2000i is designed with advanced key technologies to provide high speed, high accuracy, one stop vision inspection solutions specially catered for BGA, QFP, QFN, CSP, TSSOP, MSOP, SOP packages handled in tray.

Package Inspected: BGA, QFP, QFN, CSP, TSSOP, MSOP, SOP

Package Size: 2mm x 2mm to 42mm x 42mm

Handling Mechanism: Tray to Tray

UPH: Up to 54K (tray to tray)

Pick-up Heads: 1 x 14 (2x14 Optional)

Vision Inspection: 3D vision inspection, Leaded Packages Inspection, Ball Packages Inspection, Leadless Packages Inspection, Top 3D POP Inspection, 2D Barcode Inspection, Mark Inspection, Package Vision Inspection, Passive Component Inspection, Top Color Inspection

Machine Dimensions (mm): 2015(H) x 1342(W) x 1933(L)
