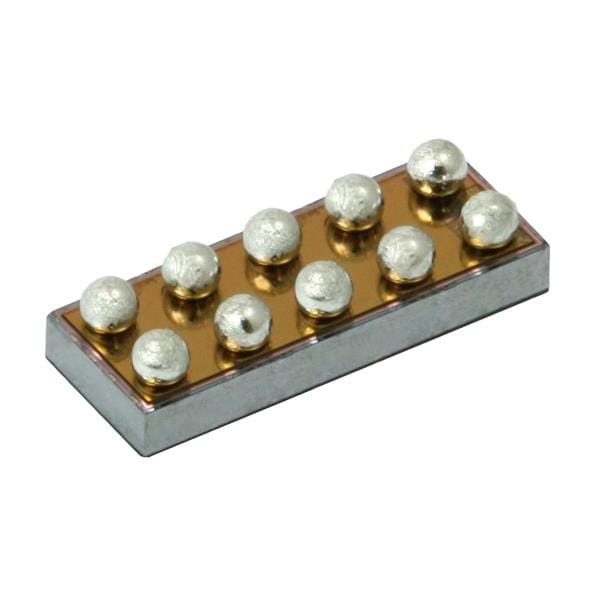

Vishay Siliconix DG3536DB-T5-E1 Analog Switch ICs Low Volt Dual SPDT

Width: 1.52 mm (Max)

Height: 0.5 mm (Max)

Length: 2.02 mm (Max)

Supply Type: Single Supply

Configuration: 2 x SPDT

On Time - Max: 82 ns

Mounting Style: SMD/SMT

Off Time - Max: 73 ns

Number of Channels: 2 Channel

On Resistance - Max: 400 mOhms

Supply Current - Max: 1 uA

Supply Voltage - Max: 6 V

Supply Voltage - Min: 1.8 V

Pd - Power Dissipation: 457 mW

Switch Continuous Current: 300 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
