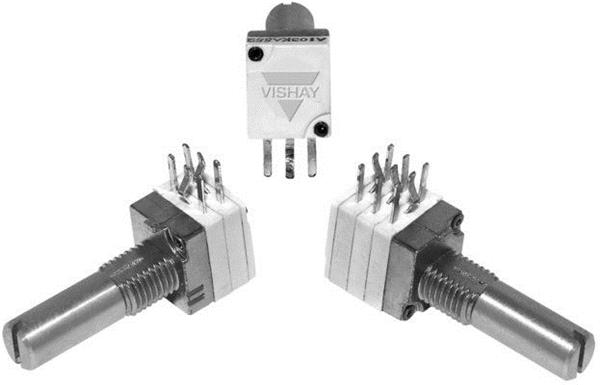

Vishay Sfernice P9A1R100FISX1102MA Rotary P9A 1 R 1 0 0 FI S X1 1K 20% A e3

Life: 25000 Cycle

Taper: Linear

Width: 9 mm

Length: 9 mm

IP Rating: IP64

Tolerance: 20 %

Resistance: 1 kOhms

Shaft Type: Smooth / Slotted

Orientation: Horizontal

Switch Type: No Switch

Thread Size: M7

Unit Weight: 6.250 g

Element Type: Conductive Plastic

Power Rating: 100 mW (1/10 W)

REACH - SVHC: Details

Shaft Length: 20 mm

Mounting Style: PCB Mount

Shaft Diameter: 6 mm

Voltage Rating: 50 VAC, 10 VDC

Number of Gangs: 1 Gang

Number of Turns: 1 Turn

Number of Detents: Without Detent

Termination Style: PC Pin

Temperature Coefficient: 500 PPM / C

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 55 C
