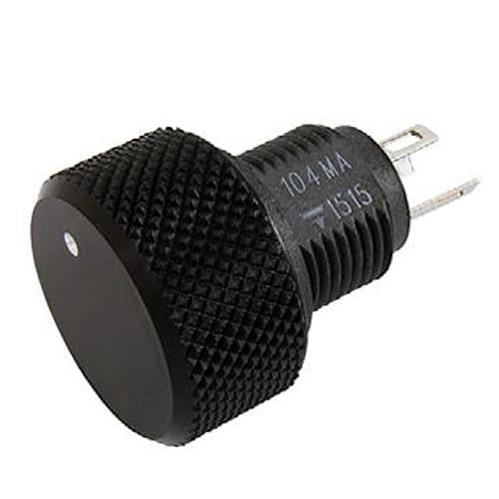

Vishay Sfernice P16SNP471MAB15 Knob Potentiometer 470ohms 20% Linear w/SW HDWR INC IP67
Manufacturer: Vishay Sfernice Model: P16SNP471MAB15 - Contact
Life: 10000 Cycle
Taper: Linear
Length: 9.6 mm
Diameter: 16 mm
IP Rating: IP67
Tolerance: 20 %
Resistance: 470 Ohms
Shaft Type: Knurled / Serrated
Orientation: Horizontal
Switch Type: Rotary Switch
Unit Weight: 4.500 g
Element Type: Cermet
Power Rating: 1 W
REACH - SVHC: Details
Bushing Thread: M10 x 0.75
Mounting Style: Panel Mount
Shaft Diameter: 10 mm
Voltage Rating: 21.7 V
Number of Gangs: 1 Gang
Number of Turns: 1 Turn
Termination Style: Solder Lug
Temperature Coefficient: 150 PPM / C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
