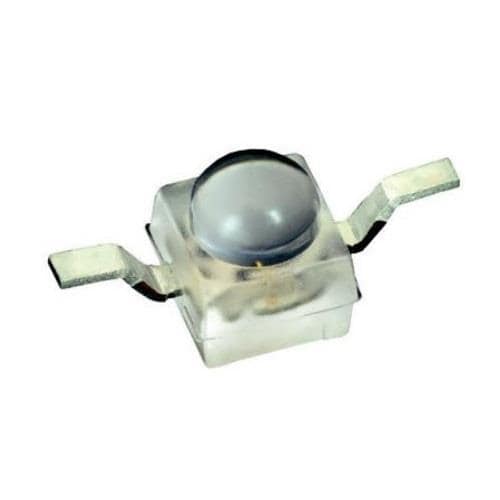

Vishay General Semiconductor VLDS1535R-08 Single Color LEDs Red 5Kmcd 630nm 2.2V Typ 22Deg

Width: 2.3 mm

Height: 2.6 mm

Length: 2.3 mm

LED Size: 2.3 mm x 2.3 mm x 2.6 mm

Lens Color: Colorless

Lens Shape: Dome

Unit Weight: 126.694 mg

Power Rating: 200 mW

Viewing Angle: 22 deg

Mounting Style: SMD/SMT

Lens Dimensions: 1.8 mm

Lens Transparency: Non-Diffused

Illumination Color: Red

Luminous Intensity: 5 cd

Moisture Sensitive: Yes

If - Forward Current: 50 mA

Vf - Forward Voltage: 2.2 V

Wavelength/Color Temperature: 630 nm

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
