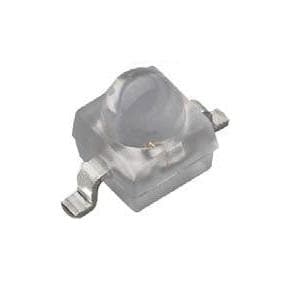

Vishay General Semiconductor VLDR1235G Single Color LEDs Red 624nm 14,500mcd 2.2V Gull Wing

Width: 2.3 mm

Height: 2.8 mm

Length: 2.3 mm

Lens Color: Colorless

Lens Shape: Dome

Unit Weight: 16 mg

Power Rating: 200 mW

Configuration: Single

Viewing Angle: 22 deg

Mounting Style: SMD/SMT

Lens Dimensions: 1.8 mm

Lens Transparency: Non-Diffused

Illumination Color: Red

Luminous Intensity: 14.5 cd

Moisture Sensitive: Yes

If - Forward Current: 50 mA

Vf - Forward Voltage: 2.2 V

Vr - Reverse Voltage: 5 V

Wavelength/Color Temperature: 624 nm

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
