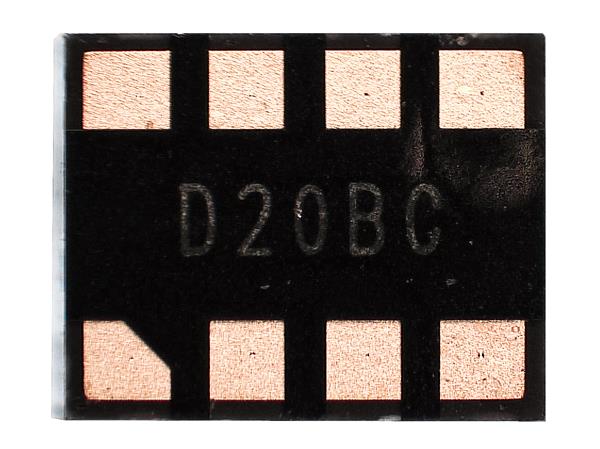

Vishay General Semiconductor VCNL36821S Proximity Sensors 940 nm IRLED 156mA 1.7 V - 3.6 V

Width: 2.05 mm

Height: 1 mm

Length: 2.55 mm

Unit Weight: 3.244 g

Mounting Style: SMD/SMT

Sensing Method: Optical

Sensing Distance: 300 mm

Maximum Frequency: 100 kHz

Moisture Sensitive: Yes

Output Configuration: I2C

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Operating Supply Current: 200 uA

Operating Supply Voltage: 1.7 V to 3.6 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
