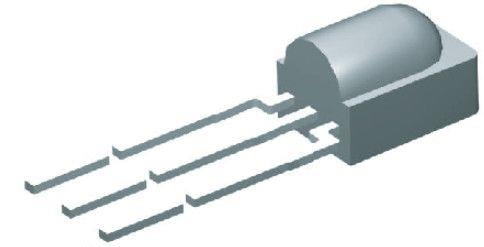

Vishay General Semiconductor TSOP38538 IR Receivers IR sensor IC 38kHz

Width: 4.8 mm

Height: 6.95 mm

Length: 5 mm

Beam Angle: 45 deg

Unit Weight: 400 mg

Viewing Angle: 45 deg

Mounting Style: Through Hole

Output Current: 5 mA

Carrier Frequency: 38 kHz

Low Level Pulse Width: 0.15 ms

Transmission Distance: 45 m

High Level Pulse Width: 0.15 ms

Pd - Power Dissipation: 10 mW

Operating Supply Current: 350 uA

Operating Supply Voltage: 2.5 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

Minimum High Level Output Voltage: 100 mV
