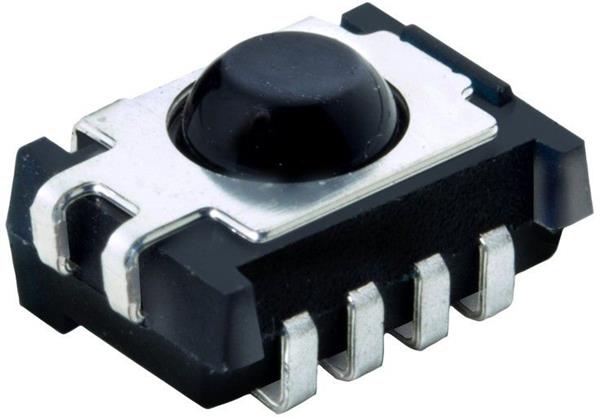

Vishay General Semiconductor TSOP36136TR IR Receivers 2.7-5.5V 36kHz

Width: 5.3 mm

Height: 4 mm

Length: 7.2 mm

Beam Angle: 45 deg

Viewing Angle: 45 deg

Mounting Style: SMD/SMT

Output Current: 10 mA

Carrier Frequency: 36 kHz

Moisture Sensitive: Yes

Transmission Distance: 45 m

Data Transmission Rate: 2200 bits/s

Pd - Power Dissipation: 10 mW

Operating Supply Current: 350 uA

Operating Supply Voltage: 2.5 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

Minimum High Level Output Voltage: 100 mV
