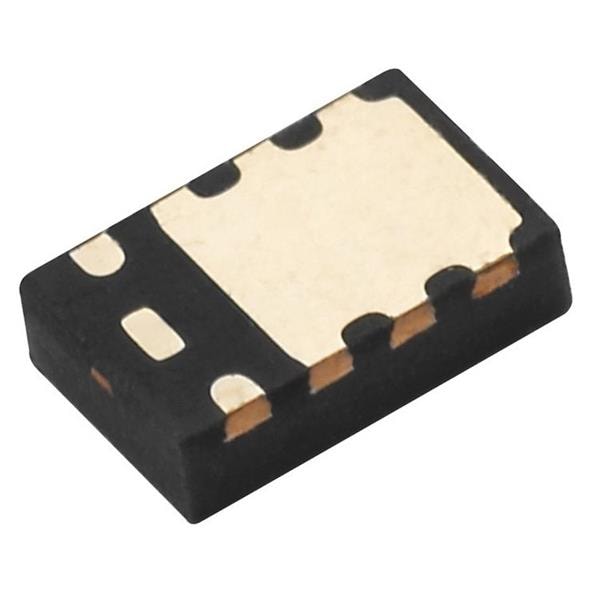

Vishay General Semiconductor SI5476DU-T1-GE3 MOSFETs 60V Vds 20V Vgs PowerPAK ChipFET

Width: 1.8 mm

Height: 0.75 mm

Length: 3 mm

Technology: Si

Unit Weight: 85 mg

Channel Mode: Enhancement

Configuration: Single

Mounting Style: SMD/SMT

Qg - Gate Charge: 32 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 31 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Id - Continuous Drain Current: 12 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 34 mOhms

Vds - Drain-Source Breakdown Voltage: 60 V

Vgs th - Gate-Source Threshold Voltage: 1 V
