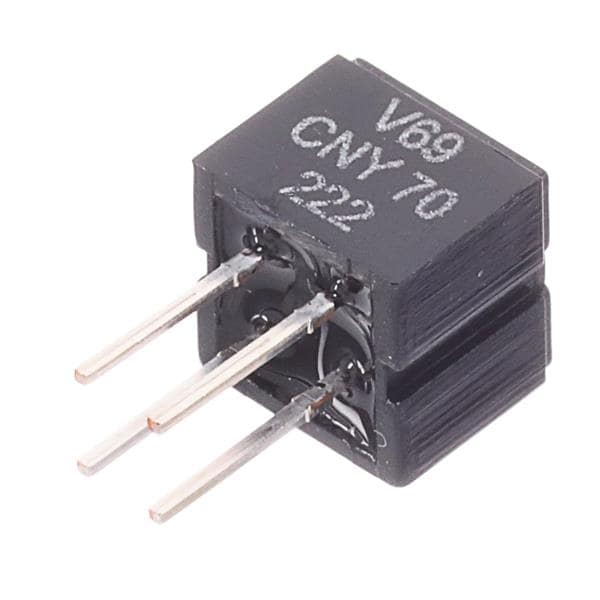

Vishay General Semiconductor CNY70 Optical Switches, Reflective, Phototransistor Output Reflective Optical Sensor w/Trans Out

Width: 7 mm

Height: 6 mm

Length: 7 mm

Wavelength: 950 nm

Output Type: Phototransistor

Unit Weight: 2.502 g

Mounting Style: Through Hole

Sensing Method: Reflective

Sensing Distance: 0 mm to 5 mm

Termination Style: Solder Pin

Number of Channels: 1 Channel

If - Forward Current: 50 mA

Vf - Forward Voltage: 1.25 V

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 200 mW

Maximum Collector Current: 50 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Collector- Emitter Voltage VCEO Max: 32 V
