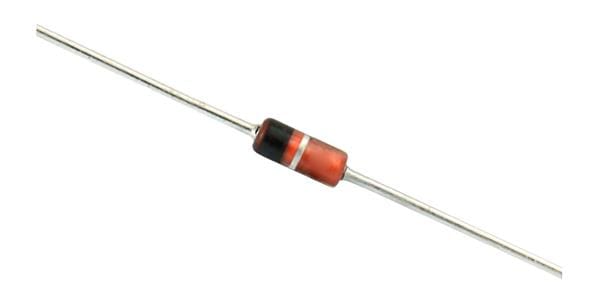

Vishay General Semiconductor 1N5266C-TR Zener Diodes RECOMMENDED ALT 1N52

Width: 1.7 mm

Height: 1.7 mm

Length: 3.9 mm

Unit Weight: 150 mg

Test Current: 1.8 mA

Configuration: Single

Mounting Style: Through Hole

Voltage Tolerance: 2 %

Vz - Zener Voltage: 68 V

Ir - Reverse Current: 100 nA

Zz - Zener Impedance: 230 Ohms

Pd - Power Dissipation: 500 mW

Maximum Operating Temperature: + 200 C

Minimum Operating Temperature: - 65 C

Voltage Temperature Coefficient: 0.097 %/K

Ir - Maximum Reverse Leakage Current: 100 nA
