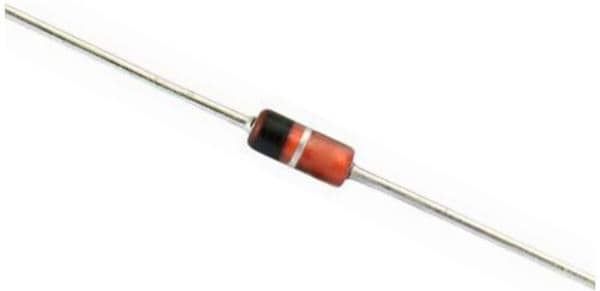

Vishay General Semiconductor 1N5250B-TR Zener Diodes 20 Volt 0.5 Watt

Width: 1.7 mm

Height: 1.7 mm

Length: 3.9 mm

Unit Weight: 150 mg

Test Current: 6.2 mA

Configuration: Single

Zener Current: 100 nA

Mounting Style: Through Hole

Termination Style: Axial

Voltage Tolerance: 5 %

Vz - Zener Voltage: 20 V

Ir - Reverse Current: 100 nA

Zz - Zener Impedance: 25 Ohms

Pd - Power Dissipation: 500 mW

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 65 C

Voltage Temperature Coefficient: 0.086 %/K

Ir - Maximum Reverse Leakage Current: 100 nA
