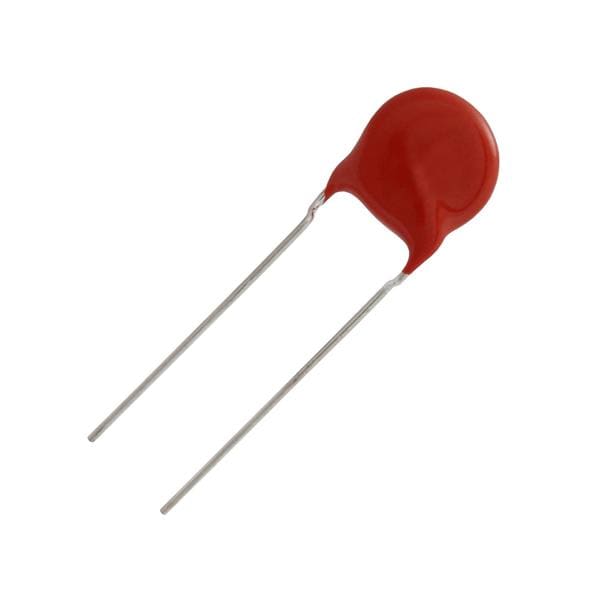

Vishay Cera-Mite 562R5GAD25 Low Voltage Disc Capacitor 562R5GAD25 e3

Class: Class 2

Diameter: 7.4 mm

Thickness: 4 mm

Tolerance: 20 %

Dielectric: Z5U

Lead Style: Kinked

Application: General Purpose

Capacitance: 2500 pF

Lead Spacing: 6.4 mm

Voltage Rating: 1 kV

Capacitance - nF: 2.5 nF

Capacitance - uF: 0.0025 uF

Termination Style: Radial

Voltage Rating DC: 1 kVDC

Dissipation Factor DF: 2.5 %

Operating Temperature Range: - 55 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C

Temperature Coefficient / Code: - 56 %, + 22 %
