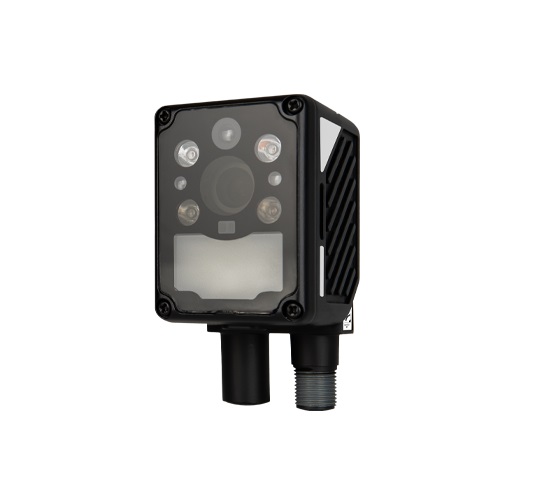

ViE Technologies XS-110 Smart Code Reader Solution (1.6mp; 12mm lens; 1408 x 1024; half polarized + diffused Infrared LED)

Receiver:

Sensor: CMOS (Mono, Global Shutter)

Resolution: 1408 x 1024

Focus: Mechanical Auto Focus

Maximum Frame Rate (FPS): 60

Focal Length:

Long Range: 12 mm (0.4724”)

Pixel Size: 3.45 μm x 3.45 μm

Sensor Size: 1/2.9”

Emitter:

Illumination Light Source Option: High Intensity Infrared LED

Diffuse Light Source: White

Reading Specifications: Supported Symbols: 2D Codes: QR Code, Data Matrix, Micro QR and PDF417

Barcodes: Code 39, Code 93, Code 128, Codabar, EAN8, EAN13, ITF25, ITF14, MATRIX25, UPCA, UPCE, MSI, CODE11, INDUSTRIAL25, CHINAPOST and PHARMACODE

Minimum Resolution: 2D Codes: 0.032 mm (0.0012”), Barcodes: 0.011 mm (0.0004”)

Reading Distance:

Long Range: 60 mm to 2000 mm (2.3622” to 78.7401”)

Reading Field of View (Working distance at 300 mm (11.8110”)

Long Range: 122.10 mm x 89.70 mm (4.8070” x 3.5314”)

Maximum Reading Speed: 110 codes / sec

I/O Specifications

Number of Control Inputs: 3

Number of Control Outputs: 3

Ethernet Supported Protocol: SmartSDK, TCP Client, Serial, FTP, TCP Server, ModBus and UDP

Serial Communication Standard: RS-232C Compliant

Environment Resistance

Enclosure Rating: IP67 *4

Surrounding Temperature: 0 to + 45 ° C (32 to 113 ° F)

Ambient Storage Temperature: -30 to + 70 ° C (-22 to 158 ° F)

Rating

Power Consumption: 6 W

Power Supply Voltage: 24 VDC

Current Consumption: 0.25 A

Weight: Approx. 195 g (0.4299 lb.)

Dimension (L x W x H):

Perpendicular: 65.4 mm x 43 mm x 58.5 mm (2.5748” x 1.6929” x 2.3031”)

Horizontal: 44.3 mm x 43 mm x 80.1 mm (1.7440” x 1.6929” x 3.1535”)
